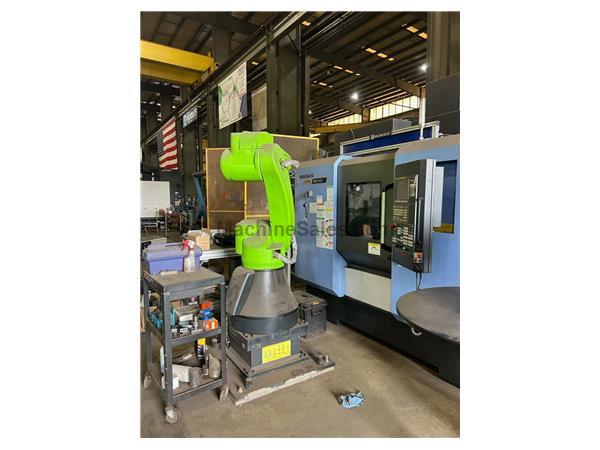

Doosan DNM 350/5ax Simultaneous 5-Axis CNC Vertical Machining Center with Fanuc CR-35iA Robot

Model DNM 350/5ax, S/N MV0053-000255, New 2016
Stock # Q12251R

EQUIPPED WITH:
Fanuc i-Series CNC Control, 13.8″ Diameter Trunnion Table, Coolant through Spindle, 30 ATC, Tool Presetter, Renishaw Probe, Spindle Chiller Unit, PCMCIA Card Slot, Thermal Compensation, Spindle Orientation, Helical Interpolation, Rigid Tapping, Coolant System. Includes Fanuc Robot CR-35iA with Controller.

SPECIFICATIONS:
# Axis………………………………………….………...…….5
Table Diameter…………………………..…....…..…..13.8"
Table Load Capacity……..………………………….….551.1 lb
Workpiece Diameter…….………………………………15.7"
Workpiece Height……………………….…………….….13.2"
X-Axis (Longitudinal Travel)………………………..23.622"
Y-Axis (Cross Travel)…………………………………..25.787"
Z-Axis (Vertical Travel)……...…………………….…19.685"
A-Axis (Trunnion Tilt Range) (±25°) ..........+30° -120°
C-Axis Table Rotation Positioning……………..…360°
Max Clearance Tabletop to Spindle Nose ..…21.7"
Min Clearance Tabletop to Spindle Nose .....2"
Spindle Power………………………..………………….…25 hp
Max Spindle Speed…………….....................…12,000 RPM
Rapid Traverse Rate (X-Axis)……………………...1,417 in/min.
Rapid Traverse Rate (Y-Axis)……………………...1,417 in/min.
Rapid Traverse Rate (Z-Axis)……………………...1,181 in/min.
Automatic Tool Changer Capacity (ATC)…....30
Spindle Taper……...…………………………………..….BIG PLUS CAT 40
Electrics……….…………………………………………….…220/3/60
Dimensions….………………………………………..…….118" x 117" x 124"
Weight…………...……………………………………..…….18,739 lbs

This machine is listed for sale by Great American Equipment Co located in Cincinnati, Ohio
