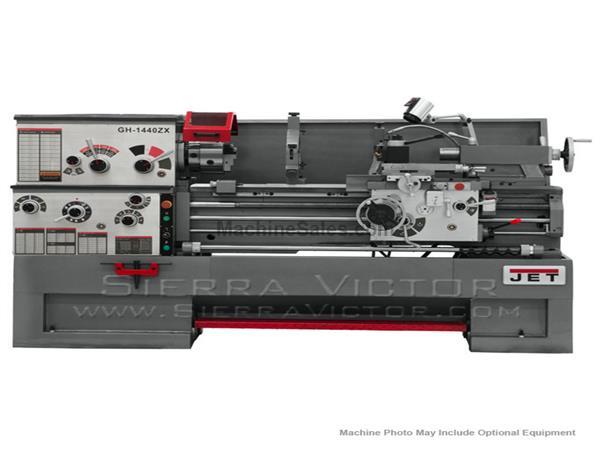

14" x 40" JET® Large Spindle Bore Lathe - $RFQ

Item Number: #00074917
14&quot; x 40&quot; JET&#174; Large Spindle Bore Lathe





14" x 40" JET® Large Spindle Bore Lathe

Stock Code:  321910
Price: $RFQ
Subcategory:

Engine Lathes

Swing14"
Centers40"
Manufacturer:  Jet
Model:  GH-1440ZX
Condition: New

CALL FOR BEST PRICE!

FEATURES:
3-1/8" bore spindle is supported by two tapered and one ball bearing
Chrome molybdenum headstock gears are hardened, ground, and shaved
One piece cast iron base absorbs vibration allowing for heavier cuts
Universal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
Meehanite® Castings

STANDARD ACCESSORIES:
10" 3-jaw scroll chuck with top reversing jaws
12" 4-jaw independent chuck
Four-way tool post
Follow rest
Large capacity steady rest
Fully integrated coolant system
Full length splash guard and coolant return
Chuck Guard
Articulating halogen work lamp
Centrally located controls with jog button

SPECIFICATIONS:
Swing Over Bed (in.): 14
Swing Over Cross Slide (in.): 7-5/8
Swing Through Gap (in.): 23-5/8
Length of Gap (in.): 12
Distance Between Centers (in.): 40
Spindle Bore (in.): 3-1/8
Spindle Mount: D1-8
Spindle Taper (w/ Sleeve): MT-7 (MT-5)
Number of Spindle Speeds: 12
Range of Spindle Speeds (RPM): 42 - 1,800
Number of Longitudinal & Cross Feeds: 122
Range of Longitudinal Feeds (IPR): .0015 - .0913
Range of Cross Feeds (IPR): .0006 - .0365
Number of Inch Threads: 61
Range of Inch Threads (TPI): 1-5/8 - 72
Number of Metric Threads: 24
Range of Metric Threads (mm): .05 - 20
Number of Diametral Pitch Threads: 45
Range of Diametral Pitch Threads: 3-1/4 - 96
Number of Modular Pitch Threads: 20
Range of Modular Pitch Threads: 0.25 - 10
Maximum Tool Size (in.): 1 x 1
Maximum Compound Slide Travel (in.): 5-1/8
Maximum Cross Slide Travel (in.): 9
Carriage Travel (in.): 36-9/16
Tailstock Spindel Travel (in.): 5
Tailstock Taper: MT-4
Follow Rest Capacity (in.): 1/2 - 3-1/2
Steady Rest Capacity (in.): 3/8 - 7
Width of Bed (in.): 13-3/8
Motor: 7-1/2HP, 230/460V, 3Ph, Prewired 230V
Overall Dim. w/ Stand (in.): 96 x 44 x 66
Net Weight (lb.): 5,187

OPTIONAL ITEMS:
321292: 5C Lever-type Collet Closer
650014: 16-pc 5C Collet Set
321291: Taper Attachment Kit
465304: MT-4 Live Center
650305: SERIES 400 WEDGE TYPE TOOL POST SET
650018: 5-C COLLET RACK - HOLDS 72 COLLETS
650017: 5-C COLLET RACK - HOLDS 30 COLLETS
650016: PREMIUM 35 PC 5-C COLLET SET W/RACK 32ND
650015: PREMIUM 18 PC 5-C COLLET SET W/RACK 16TH
660210: 23PCS TURNING TOOL KIT FOR ZX LATHES
Digital Readouts (Available for installation or aftermarket sales)
Rotary Phase Converters - NOTE: Rotary phase converter must be 10 HP or higher with high torque kit. Use of static phase converter will void warranty.

AVAILABLE PACKAGES — GH-1440ZX LATHE DRO and Accessory Packages:
321467: GH-1440ZX with Taper Attachment
321469: GH-1440ZX with ACU-RITE 200S DRO
321569: GH-1440ZX with ACU-RITE 200S DRO with Taper Attachment and Collet Closer
321507: GH-1440ZX with ACU-RITE 200S DRO with Taper Attachment
321501: GH-1440ZX with ACU-RITE 200S DRO and Collet Closer
321531: GH-1440ZX with Collet Closer
321470: GH-1440ZX with Newall DP700 DRO
321570: GH-1440ZX with Newall DP700 DRO & Taper Attachment
321441: GH-1440ZX with Newall DP700 DRO and Collet Closer
321498: GH-1440ZX with Newall DP700 DRO, Taper Attachment and Collet Closer
321301: GH-1440ZX with ACU-RITE 300S DRO
321302: GH-1440ZX with ACU-RITE 300S DRO, Taper Attachment and Collet Closer
321303: GH-1440ZX, Lathe with Acu-Rite 300S DRO & Taper Attachment Installed
321304: GH-1440ZX, Lathe with Acu-Rite 300S DRO & Collet Closer Installed

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 2 YEAR – Limited
