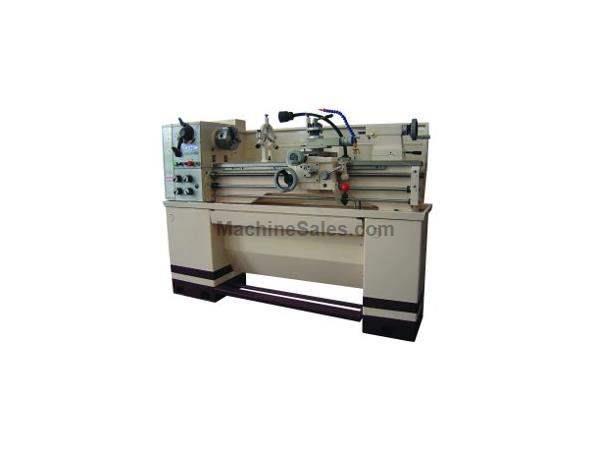

GMC GML-1440BGF, 3 HP, 3J, 4J, CL, FP, 4WTP, WL, brake, NEW - $RFQ

Item Number: #00073760
GMC GML-1440BGF, 3 HP, 3J, 4J, CL, FP, 4WTP, WL, brake, NEW





GMC GML-1440BGF, 3 HP, 3J, 4J, CL, FP, 4WTP, WL, brake, NEW

Stock Code:  6273
Price: $RFQ
Subcategory:

Engine Lathes

Manufacturer:  Gmc
Condition: Used

OPTIONAL ACCESSORIES:
SINO digital readout system, installed . . . . . . . . . . . . . . $ 750.00
Taper attachment . . . . . . . . . . . . . . . . . . . . . . . . . 700.00
Inland freight to Miami, FL. . . . . . . . . . . . . . . . . . . . 750.00

STANDARD ACCESSORIES:
Removable gap
Motor: 3 HP 220 volts / 1 phase,
6" 3 dia. jaw chuck with D1-4 direct mount
8" 4 dia. jaw chuck with D1-4 direct mount
10" Face plate, Splash guard, Steady rest, Follow rest
Centers and sleeve, Tool box, Four sided toolpost
Work light, Thread chasing dial, Coolant system
Inch/metric threading, Full length splash guard
Misc. wrenches and tools, Operation & parts manual
Full length foot brake

FEATURES:
ISO 9001 certified, No change gears required
Main spindle hardened & precision ground
Bedways induction hardened & precision ground
All gears and shafts hardened & precision ground

SPECIFICATIONS:
Swing over bed 14"
Swing over cross slide 8-1/4"
Swing over gap 19-1/4"
Length of gap 6-1/2"
Distance between centers 40"
Width of bed 6-1/2"
Hole thru spindle 1-1/2"
Spindle nose D1-4 camlock
Spindle speeds--number 8
--range 70 to 2000
Inch threads--number 38
--range 4 to 56 tpi
Metric threads--number 28
--range .4 to 7 mm
Tailstock spindle travel 4"
Tailstock taper #3 MT
Motor HP 3 HP
Coolant pump motor 1/16 HP
Electrics 220/1ph/60Hz
Net weight 1,730 lbs
Dimensions (L x W x H) 70" x 35" x 59"
