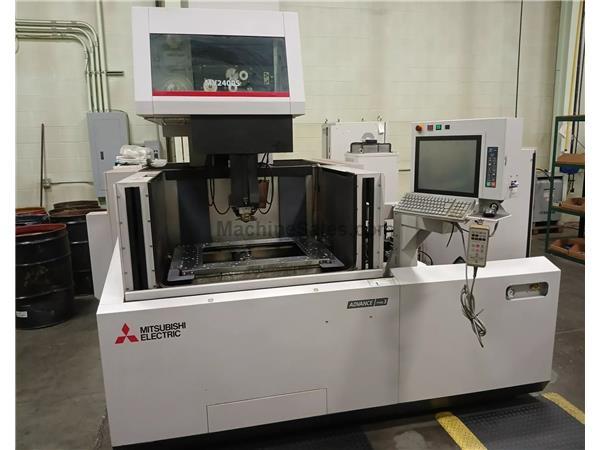

Mitsubishi Model MV2400S CNC Wire EDM

Model MV-2400S, S/N 56DM2972, New 2017
Stock # Q12339

EQUIPPED WITH:
Mitsubishi M800 CNC Control, AT- Auto Threader, Tank capacity 227 gallons, Linear motion guide ways, Linear Glass Scale Feedback X-Y Axis, Excellent Condition- 5,000 Machining Hours.

SPECIFICATIONS:
Control...................................................Mitsubishi M800
Table-L...................................................33.0 in
Table-W..................................................22.0 in
Max Workpiece Length..............................41.3 in
Max Workpiece Width...............................32.3 in
Max Workpiece Height..............................12.0 in
Max Workpiece Weight.............................3307.0 lb
X-Axis (Longitudinal Travel)......................23.6 in
Y-Axis (Cross Travel)...............................15.7 in
Z-Axis (Vertical Travel)............................12.2 in
U-Axis Travel..........................................-2.95 in
V-Axis Travel..........................................-2.95 in
Max Taper Angle.....................................15.0 deg
Wire Diameter Range...............................0.0 in
Max Wire Feed Rate.................................51.2 ipm
Max Cutting Speed..................................51.2 ipm
Dielectric Fluid Capacity............................227.0 gal
Internal Work Tank Height........................12.2 in
Auto Threading (Yes/No)...........................Yes
Submerged (Yes/No)................................Yes
Control...................................................CNC (M800)
Dimensions.............................................106' x 119" x 84"
Weight...................................................7716 lbs

CONDITION: This Machine Appears to be in Excellent Condition !

This machine is listed for sale by Great American Equipment Co located in Cincinnati, Ohio
