Woodworking Equipment > Sanders > Widebelt Sanders    < Back

2018 HOMAG MODEL SWT-335-QCH THREE HEAD WIDE BELT SANDER, 54” BELT - $RFQ

Item Number: #00149376

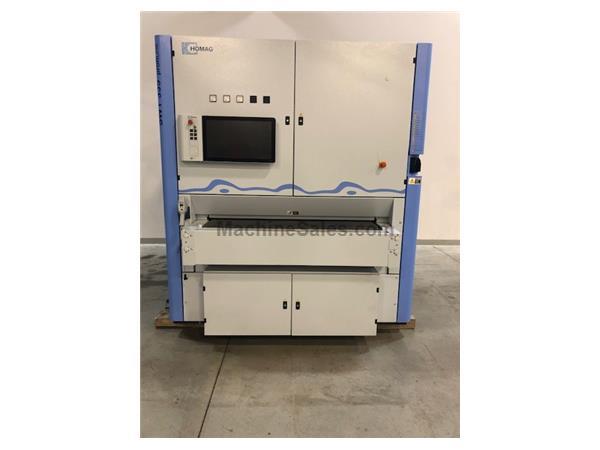

2018 HOMAG MODEL SWT-335-QCH THREE HEAD WIDE BELT SANDER, 54” BELT

2018 HOMAG MODEL SWT-335-QCH THREE HEAD WIDE BELT SANDER, 54” BELT
Stock Code:  TK-21179
Price: $RFQ
Subcategory:

Widebelt Sanders

Year of Manufacture:  2018
Manufacturer:  Homag
Model:  SWT-335-QCH
Condition: Used

Ideal for veneer, lacquer, solid wood, high gloss, solid surface & special effect sanding.

SPECIFICATIONS

SANDING HEADS: 3
SANDING WIDTH: 53”
ABRASIVE BELT: 54”X 103”
WORKING THICKNESS: 1/8” – 6.25”
FEED SPEED: VARIABLE/INVERTER DRIVEN
VARIABLE CONVEYOR SPEED: 8 – 42 FPM
CONTROLS: 21” POWER-TOUCH TOUCHSCREEN
DRIVE MOTOR (PER HEAD): 20/23/23 HP
SEGMENTED PAD SYSTEM: MAGNETIC PAD SYSTEM
BELT CHANGE SIDE: LEFT

HEAD 1
• CROSS BELT WITH INNER CHEVRON BELT
• VARIABLE CUTTING SPEED OF 2 -16 MPS
• 21 HP MOTOR
• ELECTRONIC BRAKING
• ELECTRONIC BELT TRACKING
• AIR JET BELT CLEANING

HEAD 2
• COMBINATION HEAD WITH PROFILED STEEL CONTACT ROLLER FOR CALIBRATING & SEGMENTED PAD FOR VENEER/SEALER SANDING
• VARIABLE CUTTING SPEED OF 2 -18 MPS
• 24.3 HP MOTOR
• ELECTRONIC BRAKING
• ELECTRONIC BELT TRACKING
• AIR JET BELT CLEANING

HEAD 3
• WIDE BELT WITH INNER CHEVRON BELT FOR ENHANCED FINISH
• 80 MM WIDE PAD
• VARIABLE CUTTING SPEED OF 2 -16 MPS
• 34.3 HP MOTOR
• AIR JET BELT CLEANING
• BI-DIRECTIONAL CUTTING ROTATION




GENERAL
WEIGHT: 12,400 LBS
DUST EXTRACTION: 4,750 CFM
FULL LOAD AMPS: 147 @ 460 VOLTS

ADVANCED FEATURES
• CROSS BELT SANDING UNIT IDEAL FOR LEVELING VENEER, SANDING SHORT GRAIN, LACQUER OR HIGH GLOSS SANDING OR POLISHING
• CHEVRON BELT TECHNOLOGY FOR ENHANCED FINISH SANDING
• MAGNETIC SEGMENTED PAD TECHNOLOGY WITH 12.5 MM PAD RESOLUTION FOR ULTIMATE CONTROL OF PRESSURES AND SANDING RESULTS
• 21” GRAPHICAL BASED TOUCHSCREEN CONTROLLER FOR INTUITIVE MACHINE CONTROLS AND EASE OF USE
• CONSTANT PASS LINE FEED BELT WITH INFEED ROLLERS FOR EASY LOADING, UNLOADING OR INTEGRATION INTO LINES
• AIR JET BELT CLEANING FOR LONGER BELT LIFE WHEN FINE SANDING
• POLY-V BELT DRIVES ON ALL SANDING HEADS FOR MAXIMUM HORSEPOWER AND MINIMAL VIBRATION
• VACUUM BELT FOR SECURE WORKPIECE HOLDING EVEN WHEN SANDING SMALL PARTS WITH INTERNAL FAN
• AUTOMATIC HEAD LOCKING FOR QUICK AND EASY BELT CHANGERS
• CLEANING BRUSH TO HELP ELIMINATE AND CONTAIN DUST
• ROBUST FRAME DESIGN WITH 4 HEAVY DUTY DUAL SUPPORTED JACK SCREWS BY A DUPLEX CHAIN SYSTEM
• ME 5000 WIRELESS THICKNESS SETTING
