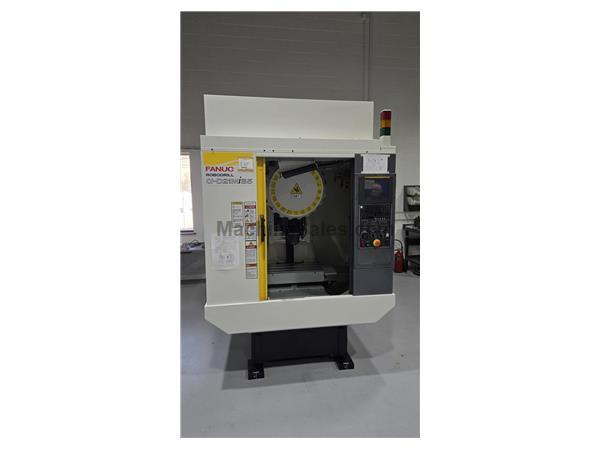

Fanuc a D21MiB5 Robodrill CNC Vertical Drill & Tap Center

Year of Mfg: 2021 **Floor Demo Model, Never Ran Production**

CNC Control: Fanuc 31i-Model B5 Control
Table Size: 25.6" x 15.7"
Table Capacity: 881 lbs
Travels:
X-Axis: 19.7"
Y-Axis: 15.7
Z-Axis: 15.7
Spindle to Table: 3.1" - 18.9"
Tool to Tool Change Time: 0.7 sec
Chip to Chip Change Time: 1.3 sec
Max Tool Length: 9.8"
Max Tool Diameter: 3.14"
Spindle Taper: BT-30
Spindle Speed: 10,000 rpm
X, Y, & Z Axis Rapid Traverse: 2125 ipm
Feedrate: .03 ipm to 1181 ipm
ATC Turret Capacity: 21 tools

Machine Weight (approx.): 4,850 lbs.
Approx. Floor Space: 63.58" x 80.31" x 88" H
Electrics: 220v 3 Phase

Equipped with:

Fanuc 31i-B5 Control
Tool Life Management
Tool Compensation Memory
Ethernet & USB Ports
Touch Panel Screen
Auto Side Door
Double Doors For M Type
Air Blow for Chips
Auto Lubrication
2MB Part Program Storage Size

This machine is listed for sale by Concord Machine Tools located in Troy, Michigan
