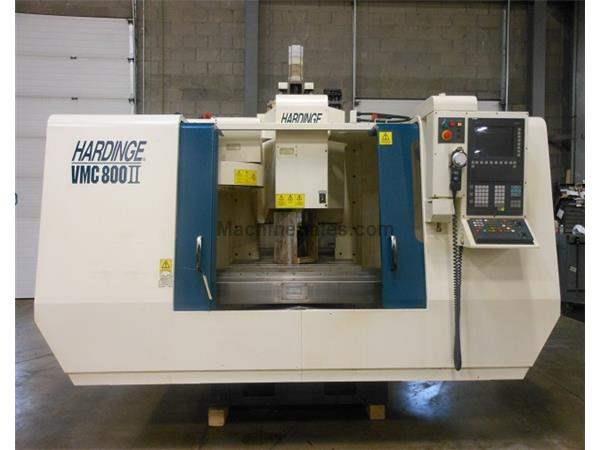

SPECIFICATIONS

TRAVELS
X-AXIS: 31.50”
Y-AXIS: 20.08”
Z-AXIS: 20.08”
Y-AXIS THROAT DISTANCE: 23”

TABLE
WIDTH: 20.00”
LENGTH: 36.40”
LOAD CAPACITY: 1,540 LBS
T-SLOTS (# & SIZE): .708” X 3 X 6.3”

SPINDLE
TAPER: 40
SPEED RANGE: 10,000 RPM
TRANSMISSION: BELTED
MOTOR (CONT/PEAK): 10 /15 HP
MAX TORQUE AT BASE SPEED: 39 FT-LB
AIR BLAST: YES

AUTOMATIC TOOL CHANGER
TYPE: CAROUSEL
TOOL CAPACITY: 20
TOOL TYPE: ANSI / CAT-V
PULL STUD TYPE: ANSI/ CAT
TOOL SELECTION: BI-DIRECTIONAL
ALL ELECTRIC CAM DRIVEN ATC: YES
MAXIMUM TOOL DIA (FULL DRUM): 3.5”
MAXIMUM TOOL DIA
(ADJACENT POCKETS EMPTY): 6”
MAXIMUM TOOL LENGTH: 9.84”
MAXIMUM TOOL WEIGHT: 13.2 LBS
TOOL TO TOOL: 3 SECONDS
CHIP TO CHIP: 6.4 SECONDS

AXES DRIVES
SERVO MOTORS X, Y, Z: 1.9 HP

BALL SCREWS
BALL SCREW SIZE /SUPPORT: FIXED PRETENSION
X-AXIS: 32 MM
Y-AXIS: 32 MM
Z-AXIS: 32 MM
BALL SCREW PITCH: 10 MM

LINEAR GUIDEWAY
TYPE: LINEAR BALL
WAY SIZE: #30
LINEAR WAYS X-AXIS: 3
LINEAR WAYS Y-AXIS: 3
LINEAR WAYS Z-AXIS: 2
LINEAR GUIDE TRUCKS X-AXIS: 5
LINEAR GUIDE TRUCKS Y-AXIS: 5
LINEAR GUIDE TRUCKS Z-AXIS: 6
LUBRICATION: MANUAL GREASE
COUNTERBALANCED Z-AXIS: MECHANICAL
Z-AXIS INTEGRAL BRAKE: STANDARD
X, Y & Z-AXIS RAPID TRAVERSE: 1181 IPM
X, Y & Z MAX FEED RATE: 472 IPM

GENERAL
MACHINE WEIGHT: 9,854 LBS
DIMENSIONS: 116.34” L-R X 85.35” F-B X 101.42”H
COOLANT FLOW CAPACITY: 39.8 GALLONS
COOLANT FLOW RATE: 13.1 GPM
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH
SIEMENS 810D CONTROL
MPG
HOOK UP FOR AIR HOSE
RIGID TAP
WORK LIGHT
SURROUND TOOL COOLANT
4TH AXIS READY

This machine is listed for sale by located in Bethlehem, Pennsylvania
