JET CL-1640ZX CNC Lathe - $RFQ

Item Number: #00035110

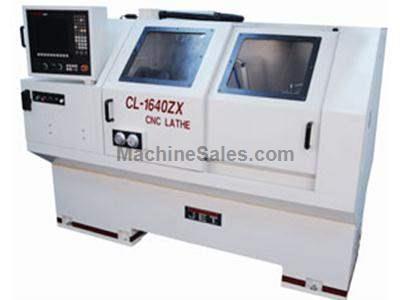

JET CL-1640ZX CNC Lathe

JET CL-1640ZX CNC Lathe
Price: $RFQ

Turning Machines CNC

Manufacturer:  Jet
Model:  CL-1640ZX
Condition: New

Swing over Bed: 16 inches
Swing Through Gap: 25-7/8"
Distance Between Centers: 40"
Spindle Bore: 3/1/8"
Spindle Mount: D1-8
Spindle Taper W/ Sleeve: MT-7
Range of Spindle Speeds (RPM): 80 - 2000
Range of Longitudinal Feeds (IPR): 394in/min
Range of Cross Feeds (IPR): 315in/min
Max Tool Size: 1 x 1"
Cross Slide Travel: 9"
Carriage Travel: 35"
Tailstock Spindle Travel: 5"
Taper in Tailstock Spindle: MT-5
Width of Bed: 13-1/4"
Motor: 10HP, 230V, 3 Phase (optional 1 phase)
Overall Dimension: 63 high x 53 wide x 91" long
Weight: 5680 pounds
* Dual electronic handwheels for manual control
* Hardened and precision ground bed ways
* High alloy gears hardened, ground and honed
* 3-Bearing spindle support
* Automatic homing
* Easy access chip removal
* 4 Station automatic tool post
* Automatic lubrication system
* Coolant system
* 12" 4-jaw chuck
* 16" Face plate
* Work light
* Steady and follow rest
* Dead center * Live center * Tool box & tools.

Features: Anilam 4200T CNC Control with 12.1 TFT Flat Screen.
