Serial No. EZ1011
New - 2008

SPECIFICATIONS:
Table Working Surface - Maximum............6" x 18"
Travels:
- Longitudinal - X-Axis.............20"
- Cross - Z-Axis............6-3/4"
Grinding Spindle:
- Speed - Variable............2000 - 5000 RPM
- Center to table - maximum height............12"
Grinding Wheel:
- Diameter............8"
- Width............1-1/4"
- Hole Diameter............1-1/4"
- Motor............1.5 HP
Feed Rates:
- Longitudinal - variable............1/4" - 70 FPM
- Wheelhead increments - minimum............0.00001
Electrics............220V/3Ph/60Hz
Machine Dimensions - approximate............72" L-R x 48" F-B x 84" H
Machine Weight - approximate............2,250 Lbs.

EQUIPPED WITH:

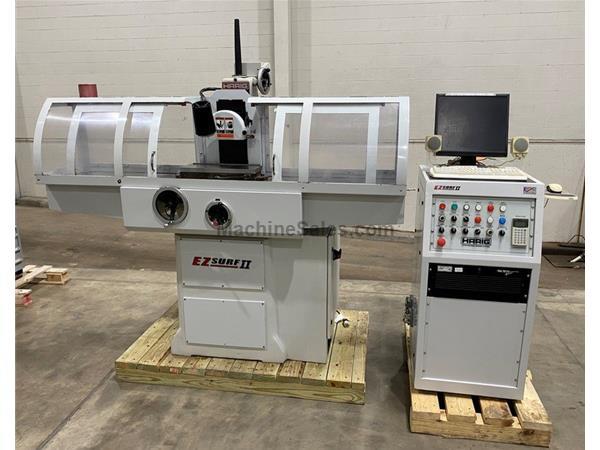

EZ-Surf PC Based 3-Axis CNC Programmable Control
3-Axis Automatic Operation
MDI-Setup-Teach-Program & Edit
3-Axis Linear & Circular Interpolation
Absolute & Incremental Operation
Dwell in MDI or End of Stroke
RS-232 Port
Electronic Handwheels on Y & Z Axes
Ballscrews on Y & Z Axes
Walker Ceramax permanent magnetic chuck
Full Enclosure
Work Light

*Preliminary specifications, subject to verification.

This machine is listed for sale by Liberty Machinery Company located in Lincolnshire, Illinois
