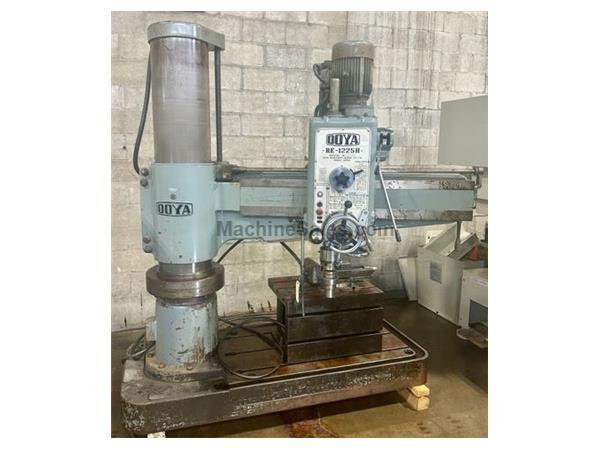

4' x 12" OOYA RE-1225H RADIAL DRILL
Model RE-1225H, S/N 0A6-11735, New 1977
Stock # Q12248

EQUIPPED WITH:
18" x 26" x 16" 2-Sided Box Table w/ Vise, Hardened Arm Ways, Tapping Capabilities, Power Elevation, Power Clamping, Coolant System (Built-In).

SPECIFICATIONS:
Arm Length............................................. 4.08'
Column Diameter..................................... 12.625"
T-Slotted Base Working Surface-L.............. 75"
T-Slotted Base Working Surface-W............. 30"
Vertical Spindle Travel in Head................... 11.8125"
Vertical Arm Travel on Column................... 25.625"
Horizontal Head Travel on Arm................... 37.75"
Max Distance Spindle to Base.................... 51.75"
Min Distance Spindle to Base..................... 13"
Max Distance Face of Column to Spindle...... 49.375"
Min Distance Face of Column to Spindle...... 11.625"
Spindle Taper.......................................... #5 MT
Spindle Diameter..................................... 2.375"
# Spindle Speeds..................................... 12
Max Spindle Speed................................... 1985 RPM
Min Spindle Speed................................... 38 RPM
# Spindle Feeds....................................... 6
Spindle Feeds Range................................ .003-.039 in/min
Drilling Capacity, Solid Steel...................... 2"
Drilling Capacity, Cast Iron........................ 2.25"
Boring Capacity, Steel.............................. 4"
Boring Capacity, Cast Iron......................... 7.125"
Motor Power............................................ 5 hp
Electrics................................................. 220/440/3/60
Extreme Height, Column Above Floor.......... 85.75"
Dimensions............................................. 80" x 48" x 90"
Weight................................................... 6,100 lbs

CONDITION: This Machine Appears to be in Very Good Condition.

This machine is listed for sale by Great American Equipment Co located in Cincinnati, Ohio
