Reference #32890

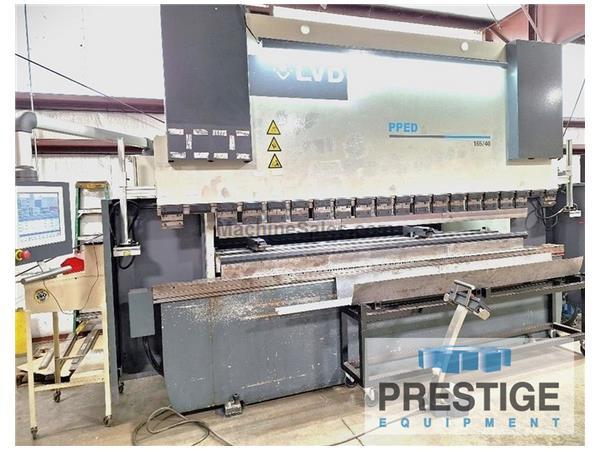

LVD/Strippit 180 Ton x 157" 7-Axis CNC Press Brake

FEATURES:
Intuitive Touch-B Cadman CNC Control with 15" Monitor
Y-1 & Y-2 Programmable Ram Axis
V-Axis Adjustable Crowning Bed
X1/R/Z1/Z2 4-Axis Back Gauge
Laser Encoders
Tooling

CAPACITY:
Maximum Tonnage Capacity .............. 180 Ton
Overall Length Of Bed & Ram ........... 157"
Distance Between Housings ............. 124"
Throat Depth .......................... "
Stroke Length ......................... 7.8"
Open Height ........................... 19.6"
Approach Speed ........................ 259 IPM
Bending Speed ......................... 24 IPM
Return Speed .......................... 236 IPM
Motor ................................. 24 HP
Approximate Dimensions ................ 174" x 70" x 107"
Approximate Weight .................... 24,200 Lbs

EQUIPPED WITH:
Intuitive Touch-B Cadman CNC Control with 15" Monitor
Y-1 & Y-2 Programmable Ram Axis
V-Axis Adjustable Crowning Bed
X1/R/Z1/Z2 4-Axis Back Gauge
Laser Encoders
Lazer Safe Dender Plus Guarding System
Tooling consisting of (1)121" Punch/Die, 120" Acute Punch, 84" Acute Die, (8) Goosneck Punches, (5) Short Dies
Complete Set of am Clamps
Servo Controlled Hydraulic System

This machine is listed for sale by Prestige Equipment located in Melville, New York
