Reference #32819

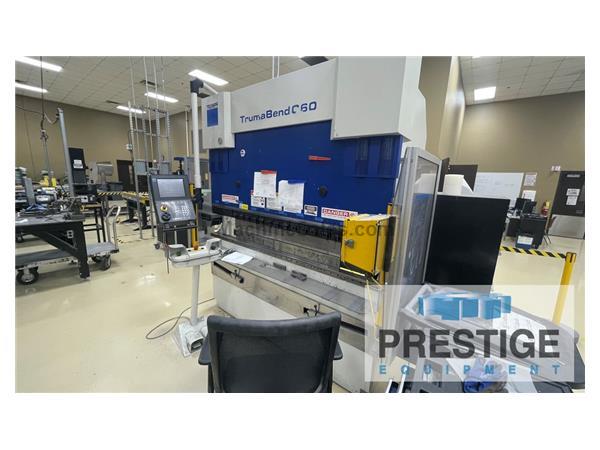

TRUMPF TrumaBend C60 60 Ton 6-Axis CNC Hydraulic Press Brake

CAPACITY:
Tonnage Capacity ...................... 67 Tons
Maximum Bending Length ................ 82"
Distance Between Housings ............. 69"
Stroke Length ......................... 8"
Throat Depth .......................... 16.5"
Travel In X-Axis (Back Gauge Range) ... 20"
Speed of Travel in X-Axis ............. 827 IPM
Travel In R-Axis (Back Gauge Up/Down) . 13"
Press Speed (Rapid Advance) ........... 236 IPM
Press Speed (Bending) ................. 47 IPM
Press Speed (Return) .................. 472 IPM
Main Motor ............................ 10 HP
Overall Dimensions .................... 96" x 65" x 95"
Overall Weight ........................ 10,780 Lbs.

EQUIPPED WITH:
Delem DA-619TC CNC Control
4-Axis CNC Back Gauge (R-1, X-1, Z-1, Z-2)
4-Cylinder Ram Drive
Full Set Of Upper Quick Clamp Tool Holders (Bolted to Machine)
Crowning System
Electric Foot Switch

NOTE:
Inspect In Plant Under Power

This machine is listed for sale by Prestige Equipment located in Melville, New York
