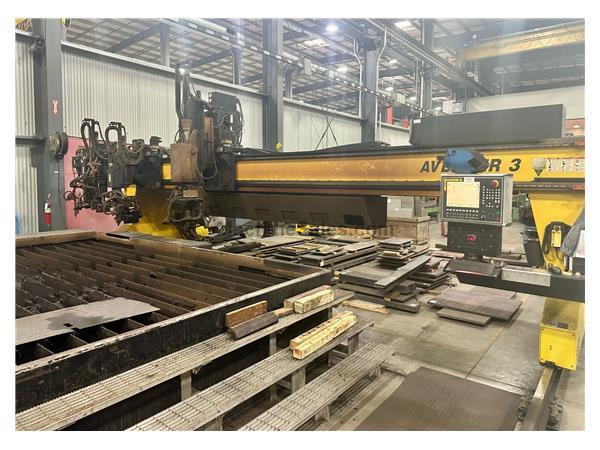

16' x 56' ESAB CNC GANTRY PLASMA / OXYFUEL 3-GANTRY STATIONS MULTIPLE TORCHES CUTTING MACHINE
Model Avenger-3, New 2008
Stock # Q12228

EQUIPPED WITH:
ESAB Vision 5 CNC Control, 16'x 59' Water Table, 8" Thick Cutting Capacity Steel, Machine has (3) CNC Controlled Cutting Stations on Gantry with (4) Total Heads with 7 Oxy/Fuel Torches and 1 Plasma Torch, Station # 1- Two Oxy/Fuel Heads mounted Approx 25" apart. First Head has one straight Oxy/Fuel Torch. The Second Head is Three Oxy/Fuel Torches with Manual Angular Bevel Adjustment. Station # 2- Triple Oxy/Fuel Torches with Manual Angular Bevel Adjustment. Station # 3- One 600 Amp Plasma Torch with CNC Controlled Bevel Adjustment, 600 Amp ESAB Plasmarc Power Supply w/ ESAB C-11 Coolant Circulator, Donaldson 3 Filter Air Filtration System, New 2008.

NOTE: If This Machine is too Big, there is a Divider in the Water Table at 28' (1/2 Length) so the Machine could be Shortened to Approx 28', or 16'x 28' Water Table.

SPECIFICATIONS:
Control............................................ CNC (ESAB Vision 5)
Fuel (Oxy/Plasma/Both)..................... Both
# CNC Controlled Stations................. 3
# CNC Controlled Heads.................... 4
# CNC Controlled Oxy Fuel Torches..... 7
# CNC Controlled Plasma Torches....... 1
Cutting Table Size-W......................... 192"
Cutting Table Size-L.......................... 672"
AMP................................................ 600 A
Electrics........................................... 480/3/60

CONDITION: This Machine Appears to be in Excellent Condition !

This machine is listed for sale by Great American Equipment Co located in Cincinnati, Ohio
