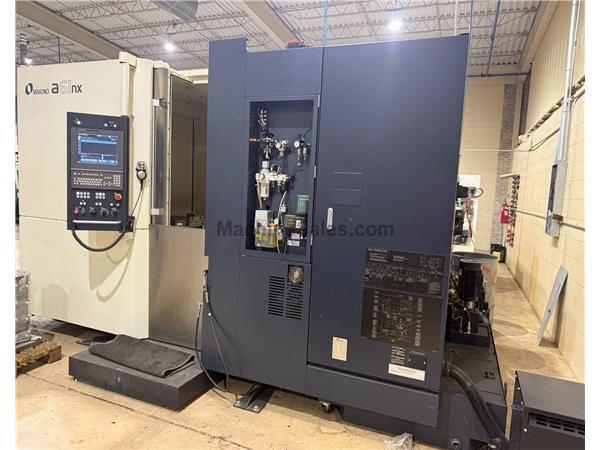

MAKINO 5-AXIS CNC HORIZONTAL MACHINING CENTER
Model A61NX, New 2019
Stock # Q12253

EQUIPPED WITH:
Professional 6 CNC Control, (2) 19.7" x 19.7" Full Contouring Pallets, (1) Pallet has a 13.7" Diameter Tsudakoma RTV-304 5th Axis, 14000 RPM Spindle, 60 Station Tool Changer, 1000 PSI through-Spindle Coolant, PQI/Renishaw OMP400 & NC4S Probing System (Probe Not Included), Upgraded memory- 2MB, Upgraded Super GI.5 Control- Super Geometric Intelligence Software, SGI.5 Full Contouring 5th Axis Software, Tilted Working Plane Command, Chip Conveyor & Coolant System. Like New, Only 53 Cutting Hours!

SPECIFICATIONS:
# Axis............................................................. 5
# Pallets.......................................................... 2
Pallet Size........................................................ 19.7" x 19.7"
# Index Positions.............................................. Full Contouring- 360,000 Positions
Max Pallet Load................................................ 1,574 lb
X-Axis (Cross Travel)......................................... 28.7"
Y-Axis (Vertical Travel)...................................... 25.6"
Z-Axis (Column Travel)...................................... 31.5"
Max Spindle Nose to Pallet Center (Horizontal)...... 35.4"
Min Spindle Nose to Pallet Center (Horizontal)....... 3.9"
Rapid Traverse Rate, All Axes.............................. 2,360 in/min.
Spindle Power................................................... 29.5 hp
Spindle Speed Range......................................... 50 - 14,000 RPM
Automatic Tool Changer Capacity (ATC)............... 60
Dimensions...................................................... 115" x 193"
Weight............................................................. 27,000 lbs

CONDITION: This Machine is in Like New Condition ! Only 53 Cutting Hours!

This machine is listed for sale by Great American Equipment Co located in Cincinnati, Ohio
