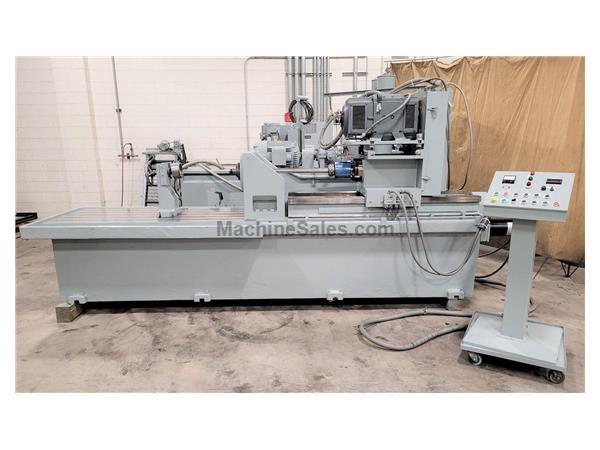

Drilling Diameter, Maximum

4”

Drilling Depth, Maximum

48”

Feed Rate

.5 to 12 IPM

Swing Over Ways

20”

Swing Over Work Surface

32”

Spindle Speeds

Variable (Parker DC VS Drive)

Spindle Horsepower

40 HP

High Pressure Coolant Pump

15 HP

Electrics

3/60/480V

Approx. Drill Dimensions

188” x 48” x 72” Height

Approx. Coolant System Dimensions

128” x 64” x 96” Height


EQUIPPED WITH:Operators Control Station with Spindle Pressure / Drill Monitor Load Meter. Spindle RPM Display. Spindle Variable Speed Controller. Feed IPM Thumb Wheel Selector. Manual and Automatic Operation Controls. Manual Operation Controls for Spindle Run. Coolant. Rapid Advance. Forward Feed, Retract, E-Stop, and Emergency Retract. Updated with Parker DC Spindle Speed Drive.
High-Pressure Coolant Filtration System with 7.5 HP Filter Pump that Removes Coolant from the bottom of the Settling Tank and Pumps it Through Filters into the Clean Coolant Top Tank. Micron Polishing Filtration with (2) Cartridge Type Filters. 15 HP Grundfos High-Pressure Coolant Pump. Chip Conveyor. Air-Oil Mist Lubrication to the Spindle. Automatic Way Lubrication System. Transformer.
32
x 72
T-Slotted Work Surface. Tailstock with Spring Loaded Cup Type Support. (3) Pressure Heads. Large Assortment of Spring Collets for Pressure Heads. (2) Drill Bush Heads with Large Assortment of Sleeves, Bushings, and Lock Nuts. Large Assortment of BTA Tubes (Some Extend for up to 96
Drilling). Large Assortment of BTA Drill Heads.

This machine is listed for sale by Adams Machinery Company located in Lake Bluff, Illinois
