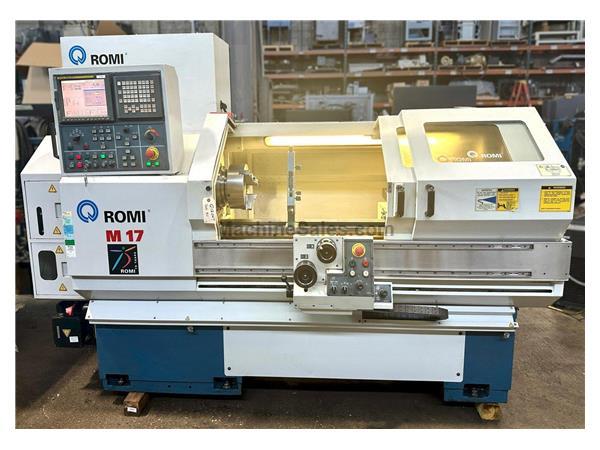

17" x 40" ROMI M17 CNC FLAT BED LATHE
Model M17, S/N 002-090664-403, New 2005
Stock # Q12047

EQUIPPED WITH:
Fanuc 21i-T CNC Control with 10.4" Color LCD Monitor, Apron with 2 Electronic Hand Wheels for X & Z, 4-Position Joystick X & Z Axis Rapid Traverse, Spindle Control Lever for Manual Operation, Automatic Lubrication System, Rigid Cast Iron 'H' Bed Design, Hardened and Ground Ways, Tailstock with Manual Quill and Dual Position Clamps, Coolant System, Removable Chip Box, RS-232 Port, Variable Speed Spindle Between (2) Gear Ranges, 10" 3-Jaw Chuck, 4.25" Capacity Steady Rest, Coolant Pump and Tank.


SPECIFICATIONS:
Max Swing Over Bed....................... 16.9"
Max Swing Over Carriage................. 15.7"
Max Swing Over Cross Slide............. 8"
Chuck Size..................................... 10" 3-Jaw
Max Distance Between Centers......... 40"
X-Axis (Cross Travel)....................... 8.7"
Z-Axis (Longitudinal Travel)............. 40"
X-Axis Rapid Traverse Rate.............. 395 IPM
Z-Axis Rapid Traverse Rate.............. 295 IPM
Spindle Nose.................................. A2-6
Spindle Bore................................... 2.56"
Spindle Speed Range....................... 3 - 3,000 RPM
Spindle Horsepower........................ 10 HP
Tailstock Quill Travel....................... 4.7"
Tailstock Quill Diameter................... 2.4"
Tailstock Quill Taper........................ 4 CM
Electrics......................................... 240/3/60
Approximate Machine Dimensions..... 108" x 50"
Approximate Machine Height............ 77"
Approximate Machine Weight............ 6,285 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

This machine is listed for sale by Great American Equipment Co located in Cincinnati, Ohio
