Morgardshammer 22" 3-Hi Rev. Bar Rolling Mill w/Roller Bearings |
|
| Stock Code: |
25555 |
| Price: | $RFQ |
| Subcategory: | Bar & Rod Mills |
| Year of Manufacture: |
1970 (estimated) |
| Manufacturer: |
Morgardshammer |
| Model: |
P-473a |
| Condition: | Used |

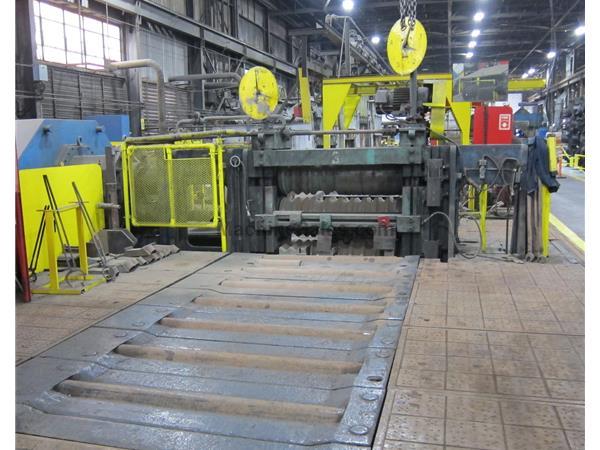

This 3-Hi Reversing Mill is designed to run production on Exotic Metals such as Nickel Based Alloy Bar. It is equipped with Spherical Roller Bearings and Tilt Table on both the Entry and Exit areas of the Mill.
It will accept up to 8" diameter Billets and has rolled product down to 2" round & square bars. Some of the sizes and number of passes utilized for various typical products rolled are listed below.
It runs one stand at a time but it has four stands; one Cogging and three Rolling Stands each being set for different sized products.
It is driven by a 790kW (1,059hp) ASEA DC drive with large Gearbox.
Roll dims: 22.2050" dia x 70.8660" face x 113.1500" total length
Rough Roll (pre-machined) weight: 9,514 lbs
Finished Roll (post machined) weight: 8,910 lbs
The Mill is equipped with Spherical Roller Bearings, Tilt Table and Powered Screw Downs which enable adjustment while the Mill is running.
Typical Rolling Reduction Procedures w/listed materials that have run on this Mill are as follows:
1.) 6-1/2" Sq to 2" Sq in both (19) & (21) passes rolled on - U-718, U-901, D-979, A-286, Ni-80, Ni-90, Waspaloy, M-252, X-750, U-625 & UDHX
2.) 6-1/2" Sq to a 4.110" Sq in (13) passes rolled on - U-718, U-901, D-979, A-286, Ni-80, Ni-90
3.) 6-1/2" Sq to 5-1/4" Sq in (6) passes rolled on M-252
4.) 5-1/4" Sq to 3.930" Sq in (6) passes rolled on M-252
5.) 3.930" Sq to 2" Sq in (7) passes rolled on M-252
6.) 6-1/2" Sq to 4.54" Sq in (10) passes rolled on M-252, Waspaloy, U-718
7.) 4.54" Sq to 2" Sq in (11) passes rolled on M-252, Waspaloy, U-718
Flying Screw technique is used on the Mill to adjust the top roll while the material is being rolled in the bottom pass and vice-versa. This reduces delay between passes to minimize heat loss from the billet, thereby saving a reheat.
Condition is Excellent having been very well maintained.
Included are three sets of spare Rolls - one set is Brand New - Never Used.
Also included is a large complement of Spare Parts.
Still installed this Mill is available for immediate inspection & delivery at NorthEast USA Plant Site!
This machine is listed for sale by TrueForge Global Machinery Corp.
located in Rockville Centre, New York
