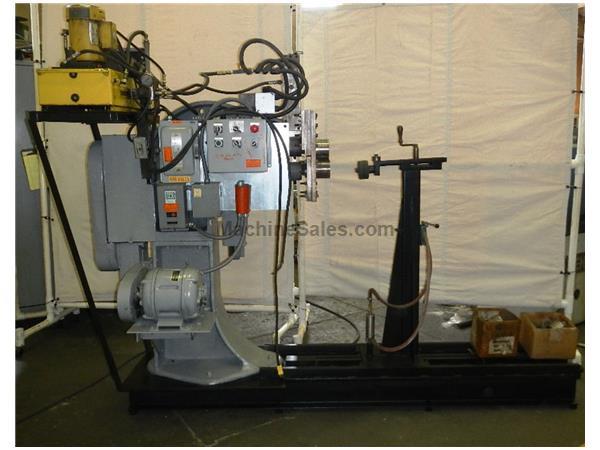

10 GAUGE MAPLEWOOD ROTARY COMBINATION MACHINE (CRIMPING AND BEADING)
MODEL 20D Year 1969
Capacity ........................... 10 gauge (mild steel)
Throat Depth ....................... 20"
Forming Speed ...................... 20 fpm
Distance Btw Shaft Cntrs (vert.) ... 4.25"
Diameter of Spindles ............... 1.75"
Diameter of Rolls .................. 4.25"
Motor .............................. 2 hp
Work Height ........................ 54" (with risers)
Air Supply ......................... 90 psi
Motor .............................. 2 HP 220 / 440V
Hydraulic Motor .................... 1-1/2 HP 110V
Dimensions: 114" x 32" x 82" high
Weight: 2,500 lbs
Machine is equipped with:
- Enerpac hydraulic upper roll clamping system
- Updated electrical system with A/B PLC control
- 4-postion force / pressure system settings
- Forward / reverse operation
- Roller track mounted adjustable work rest
- Outboard support w/ pneumatic position lock
- Several extra sets of tools.
*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
FOB: GRAND RAPIDS, MI
