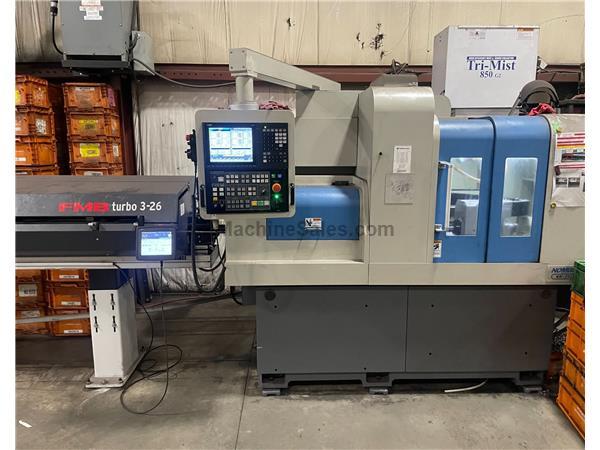

NOMURA NN-20J3XB CNC SWISS-TYPE TURNING CENTER
Model NN-20J3XB, New 2022
Stock # Q12246

EQUIPPED WITH:
Mitsubishi M80 Type A CNC Control, Tri Mist 850-G2 Mist Collector, 12' Edge FMB Turbo 3-26 Bar Feeder, Parts Catcher & Conveyor.

This 20J3XB is a highly-flexible machine with a sub-spindle that comes standard with 6 OD tools, 4 static front/back drilling stations and 5 live cross drill/mill spindles for the main spindle. The sub-spindle has 3 static back drilling tools, 2 OD tools, 3 live cross drill/mill tools and 3 live off-center drill/mill tools. Both the main and back spindles come standard with a .001° C-Axis.

CATALOG SPECIFICATIONS:
MACHINING CAPACITY
Max Machining Diameter........................... Ø20mm
Max Machining Length............................... 200mm / 1 Chuck
Max Parts Unloading Length....................... 93mm

SPINDLE
Main Spindle Through-Hole Diameter......... Ø23mm
Spindle RPM (Main/Sub)............................ 10,000 RPM
Sub Spindle Chucking Diameter................. Ø20mm

TOOL
Max Number of Tools................................. 28
Max Machining Drill................................... Ø10mm
Max Machining Tap.................................... M8

* MAIN
O.D. Tool................................................. 6 (12.7x150 mm)
I.D. Tool.................................................. 4 (ER16) (OP: Rear 4)
Cross Drill............................................... 5 (ER16)
Cross Drill RPM....................................... 6,000 RPM

* SUB
O.D. Tool................................................. 2 (12.7x150 mm Max)
I.D. Fixed Tool.......................................... 3 (ER16)
Cross Drill............................................... 4 (ER16)(B2 Axis)
Cross Drill RPM........................................ 6,000 RPM

FEED
Rapid Feed Rate........................................ X1, Y1, X2, Y2: 28mm/min
Z1, Z2 : 30mm/min
Min Command Unit................................... 0.00001 mm
C-Axis Min Command Unit (Main/Sub)....... 0.00001°

MOTOR
Main Spindle Motor.................................... 3.7/1.5 kW
Cross Drill Motor........................................ 1.5/0.55 kW (Mitsubishi)
Sub Spindle Motor..................................... 3.7/1.5 kW
Sub Rotary Motor....................................... 1.5/0.55 kW (Mitsubishi)
Coolant Pump (Main/Sub).......................... 0.25 kW x 2
Lubricant Pump......................................... 0.015 kW

DIMENSIONS, ETC.
Main Spindle Center Height....................... 1,010 mm
Input Power Capacity................................. 17 kVA
Air Pressure/Flow Rate............................... 0.6 MPa.35L/min
Coolant Tank............................................. 160 L
W x D x H................................................... 2,411 x 1,478 x 2,005 mm
Weight (Standard Accessories Included)…........ 2,800 kg

NC
NC Unit..................................................... M80 Type A (Mitsubishi)
NC Display................................................ 10.4 Color TFT LCD
Memory Capacity....................................... 500KB (Mitsubishi)
No. of Tool Offset....................................... 256 Sets (Mitsubishi)

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Ohio Location
