Tsugami B0385L 5-Axis CNC Swiss Turning Center, Fanuc Oi-TD CNC, 2011 |
|
| Stock Code: |
Q12108 |
| Price: | $RFQ |
| Subcategory: | Automatic Screw Machines - Swiss Type CNC |
| Spindle hole diameter: | 1.496" |
| Year of Manufacture: |
2011 |
| Manufacturer: |
Tsugami |
| Model: |
B0385L |
| Condition: | Used |

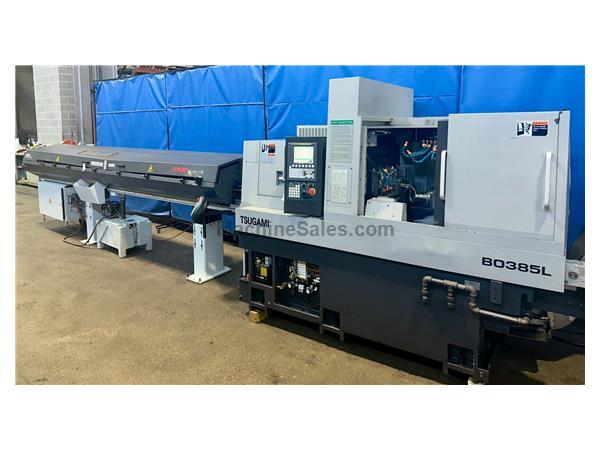

TSUGAMI B0385L CNC PRECISION AUTOMATIC LATHE
Model B0385L, S/N 105, New 2011
Stock # Q12108
EQUIPPED WITH:
Fanuc Oi-TD CNC Control, Max Barstock Diameter 38 mm, Max Workpiece Length 100 mm, Main Spindle/Back Spindle/Tool Spindle, 5-Axis=Z1-X1-Y1-X2-Z2, 23 Total Tool Storage, 12' Edge Technologies FMB 3-38 Bar Feeder, 1000 PSI MP Systems High Pressure Water Based Coolant System, Coolant Tank & LNS Chip Conveyor, 48 Collets & 10 Toolholders (4 Live) Included, New 2011.
Hours as of 7/31/2025 (as in photo):
* Power On: 45,090 Hours
* Cutting Time: 18,111 Hours
*** Replacement Cost for This Equipped System If Purchased New Today: $300,000
SPECIFICATIONS:
# Axis...................................................... 5
Max Working Barstock Diameter................... 1.4961"
Max Workpiece Length................................ 3.937"
Max Drilling Diameter Main Spindle............... 0.5118"
Max Tapping Diameter Main Spindle............... M12
Max Barstock Diameter Back Spindle............. 1.4961"
Max Drilling Diameter Back Spindle................ 0.4724"
Max Tapping Diameter Back Spindle............... M12
Max Drilling Diameter Tool Spindle................. 0.3937"
Max Tapping Diameter Tool Spindle................ M8
Max Slotting Cutter Diameter Tool Spindle...... 1.7717"
Main Spindle Speed Range............................ 200-6,000 RPM
Back Spindle Speed Range........................... 200-7,000 RPM
Tool Spindle Speed Range............................ 200-5,000 RPM
Total Tool Storage Capacity........................... 23
Tool Size.................................................... .787" x .787" x 4.92"
X1-Axis Rapid Traverse Rate......................... 944.9 IPM
Y1-Axis Rapid Traverse Rate......................... 944.9 IPM
Z1-Axis Rapid Traverse Rate......................... 944.9 IPM
X2-Axis Rapid Traverse Rate......................... 1,259.8 IPM
Spindle Index............................................. C1 Axis and C2 Axis
Main Spindle Power...................................... 14.8 hp
Back Spindle Power...................................... 7.4 hp
Cross Drill of Front Tool Post Power................ 1.3 hp
Cross Drill of Rear Tool Post Drive.................. 1.3 hp
Z1 Axis Power............................................. 1.6 hp
X1 Axis Power............................................. 1 hp
Y1 Axis Power............................................. 1 hp
X2 Axis Power............................................. 3.4 hp
Z2 Axis Power............................................. 3.4 hp
Coolant Pump Power.................................... 0.8 hp
Lubricating Oil Pump Power........................... 0.004 hp
Power Source Requirement........................... 30 kVA
Compressed Air Requirement........................ 58 PSI
Air Discharge Rate....................................... 3.5 SCFM
Coolant Tank Capacity.................................. 51.5 gal
Dimensions................................................ 99.2" x 52.95" x 77.56"
Weight....................................................... 10,150 lbs
CONDITION: This Machine Appears to be in Excellent Condition.
This machine is listed for sale by Great American Equipment Co
located in Cincinnati, Ohio
