10" x 50" JET® EVS Milling Machine: JTM-1050EVS2 - $RFQ

Item Number: #00094628
10&quot; x 50&quot; JET&#174; EVS Milling Machine: JTM-1050EVS2

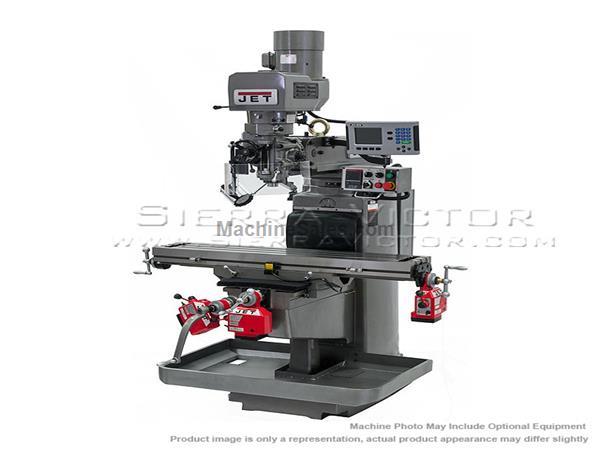

10" x 50" JET® EVS Milling Machine: JTM-1050EVS2

Stock Code:  690601
Price: $RFQ
Subcategory:

Vertical Millers

Table width10"
Table length50"
Manufacturer:  Jet
Model:  JTM-1050EVS2
Condition: New

Play YouTube Video
CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
Meehanite castings
Precision honed and bored milling head
High precision class 7 spindle bearings
Spindle head is internally cooled
Quick Spindle feed nut
One-piece quill pinion and shaft
Three-stage power downfeed with automatic stop
Heavy-duty spindle brake
Precision hardened and ground ways and table
Turcite B on X & Y Axis
Adjustable gibs throughout
CSA/CUS Certified
Spindle Guard
Electrical Box with 115V outlets
Internal coolant tank built into casting base
Automatic Lubrication every 30 minutes with a flow of 3-6cc reduces maintenance
Inverter Drive System and Emergency Stop located on a Swing Away Control Arm moves all major funtions within the Operators reach
JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor
Two 115V outlets on electrical box for DRO or Powerfeeds

STANDARD EQUIPMENT:
Spindle Safety Guard
Halogen Machine Lamp
Dual Locks on All Moveable Surfaces
Chip Pan
Way Covers
Draw bar
Tool box with tools

SPECIFICATIONS:
Table Size (in.): 10 x 50
Spindle Taper: R-8
Quill Diameter (in.): 3-3/8
Number of Spindle speeds: Variable
Range of Spindle Speeds (RPM): 60 - 4,500
Quill Down feed Rates (IPR): .0015–.003–.006
Quill Travel (in.): 5
Head Movement (deg.): 90°R & L 45° F & B
Max Distance Spindle to Table ( in.): 20-3/4
Distance Spindle to Column (max./in.): 26-3/4
Distance Spindle to Column (min./in.): 4-3/4
Collet Capacity (in.): 1/8 - 7/8
Table Longitudinal Travel (range/in.): 29-7/8 - 35-1/3
Table Cross Travel (in.): 14-3/4
T-Slots Number and Size (in.): 3 and 5/8
T-Slot Centers (in.): 2-1/2
Work Table Weight Capacity (lbs.): 840
Travel of Knee (in.): 16-1/8
Travel of Ram (in.): 15-7/8
Saddle Width (in.): 20
Column Width (in.): 11-1/2
Inverter Type: Delta, B
Motor: 3HP, 230V, 3Ph
Overall Dim. (in.): —
Net Weight (lb.): 2,860

OPTIONAL MODELS:
690600: JTM-10502EVS Mill (STANDARD)
690601: JTM-10502EVS with X Powerfeed
690602: JTM-1050EVS2 with X Powerfeed & Air Power Drawbar
690606: JTM-1050EVS2 with Acu-Rite VUE DRO & X Powerfeed
690607: JTM-1050EVS2 with Acu-Rite VUE DRO & X Powerfeed & Air Power Drawbar
690614: JTM-1050EVS2 with 3-Axis Acu-Rite VUE DRO (Quill) & X Powerfeed
690615: JTM-1050EVS2 with 3-Axis Acu-Rite VUE DRO (Quill)
& X Powerfeed & Air Power Drawbar
690619: JTM-1050EVS2 with Acu-Rite 200S DRO & X Powerfeed
690620: JTM-1050EVS2 with Acu-Rite 200S DRO & X Powerfeed & Air Power Drawbar
690629: JTM-1050EVS2 with 3-Axis Acu-Rite 200S DRO (Quill) & X Powerfeed
690630: JTM-1050EVS2 with 3-Axis Acu-Rite 200S DRO (Quill)
& X Powerfeed & Air Power Drawbar
690634: JTM-1050EVS2 with Newall DP700 DRO & X Powerfeed
690635: JTM-1050EVS2 with Newall DP700 DRO & X Powerfeed & Air Power Drawbar
690644: JTM-1050EVS2 with 3-Axis Newall DP700 DRO (Quill) & X Powerfeed
690645: JTM-1050EVS2 with 3-Axis Newall DP700 DRO (Quill)
& X Powerfeed & Air Power Drawbar

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 2 YEAR – LIMITED
