9" x 49" JET® EVS Milling Machine: JTM-949EVS - $RFQ

Item Number: #00094627
9&quot; x 49&quot; JET&#174; EVS Milling Machine: JTM-949EVS

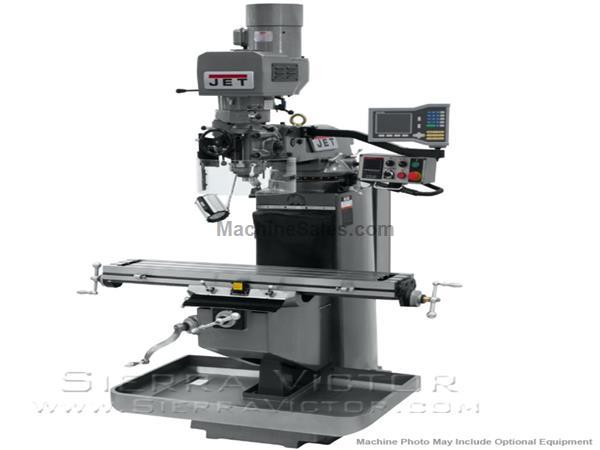

9" x 49" JET® EVS Milling Machine: JTM-949EVS

Stock Code:  690501
Price: $RFQ
Subcategory:

Vertical Millers

Table width9"
Table length49"
Manufacturer:  Jet
Model:  JTM-949EVS
Condition: New

Play YouTube Video
CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
Meehanite castings
Precision honed and bored milling head
High precision class 7 spindle bearings
Spindle head is internally cooled
Quick Spindle feed nut
One-piece quill pinion and shaft
Three-stage power downfeed with automatic stop
Heavy-duty spindle brake
Precision hardened and ground ways and table
Turcite B on X & Y Axis
Adjustable gibs throughout
CSA/CUS Certified
Spindle Guard
Electrical Box with 115V outlets
Internal coolant tank built into casting base
Automatic Lubrication every 30 minutes with a flow of 3-6cc reduces maintenance
Inverter Drive System and Emergency Stop located on a Swing Away Control Arm moves all major funtions within the Operators reach
JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor
Two 115V outlets on electrical box for DRO or Powerfeeds

STANDARD EQUIPMENT:
Spindle Safety Guard
Halogen Machine Lamp
Dual Locks on All Moveable Surfaces
Chip Pan
Way Covers
Draw bar
Tool box with tools

SPECIFICATIONS:
Table Size (in.): 9 x 49
Spindle Taper: R-8
Quill Diameter (in.): 3-3/8
Number of Spindle speeds: Variable
Range of Spindle Speeds (RPM): 60 - 4,500
Quill Down feed Rates (IPR): .0015–.003–.006
Quill Travel (in.): 5
Head Movement (deg.): 90°R & L 45° F & B
Max Distance Spindle to Table ( in.): 20-3/4
Distance Spindle to Column (max./in.): 18-1/8
Distance Spindle to Column (min./in.): 4-3/4
Collet Capacity (in.): 1/8 - 7/8
Table Longitudinal Travel (range/in.): 30-3/4 - 36
Table Cross Travel (in.): 12-5/8
T-Slots Number and Size (in.): 3 and 5/8
T-Slot Centers (in.): 2-1/2
Work Table Weight Capacity (lbs.): 720
Travel of Knee (in.): 15-3/4
Travel of Ram (in.): 15-1/4
Saddle Width (in.): 18
Column Width (in.): 11-1/2
Inverter Type: Delta, B
Motor: 3HP, 230V, 3Ph
Overall Dim. (in.): —
Net Weight (lb.): 2,420

OPTIONAL MODELS:
690500: JTM-949EVS Mill (STANDARD)
690501: JTM-949EVS with X Powerfeed
690502: JTM-949EVS with X Powerfeed & Air Power Drawbar
690506: JTM-949EVS with Acu-Rite VUE DRO & X Powerfeed
690507: JTM-949EVS with Acu-Rite VUE DRO & X Powerfeed & Air Power Drawbar
690515: JTM-949EVS with 3-Axis Acu-Rite VUE DRO (Quill) & X Powerfeed
690516: JTM-949EVS with 3-Axis Acu-Rite VUE DRO (Quill)
& X Powerfeed & Air Power Drawbar
690520: JTM-949EVS with Acu-Rite 200S DRO & X Powerfeed
690521: JTM-949EVS with Acu-Rite 200S DRO & X Powerfeed & Air Power Drawbar
690530: JTM-949EVS with 3-Axis Acu-Rite 200S DRO (Quill) & X Powerfeed
690531: JTM-949EVS with 3-Axis Acu-Rite 200S DRO (Quill)
& X Powerfeed & Air Power Drawbar
690535: JTM-949EVS with Newall DP700 DRO & X Powerfeed
690536: JTM-949EVS with Newall DP700 DRO, X Powerfeed & Air Power Drawbar
690545: JTM-949EVS with 3-Axis Newall DP700 DRO (Quill) & X Powerfeed
690546: JTM-949EVS with 3-Axis Newall DP700 DRO (Quill)
& X Powerfeed & Air Power Drawbar


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 2 YEAR – LIMITED
