4.5" (114mm) X .237" (6mm) YODER WH-350S RAFTED STAINLESS STEEL TUBE MILL W/ - $RFQ

Item Number: #00098633
4.5&#034; (114mm) X .237&#034; (6mm) YODER WH-350S RAFTED STAINLESS STEEL TUBE MILL W/





4.5" (114mm) X .237" (6mm) YODER WH-350S RAFTED STAINLESS STEEL TUBE MILL W/

Stock Code:  113024
Price: $RFQ
Subcategory:

Tube Mills

Manufacturer:  Yoder
Model:  - WH-350S
Condition: Used

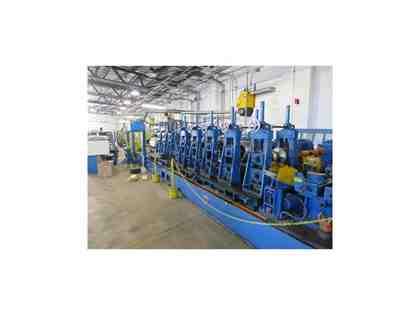

4.5" (114mm) X .237" (6mm) YODER WH-350S RAFTED STAINLESS STEEL TUBE MILL W/

INLINE BRIGHT ANNEALING

MANUFACTURER - YODER MANUFACTURING
MODEL - WH-350S
YEAR - 1997
MATERIAL - STAINLESS STEEL
DIAMETER RANGE - 2.375"-4.5"
WALL THICKNESS RANGE - 0.065"-0.237"
SHAFT DIAMETER - 4"
MILL SPEED - 0-15 FPM
POWER SUPPLY - 480 V, 3 PH, 60 HZ
LINE DIRECTION - RIGHT TO LEFT
LINE LENGTH - 183' 6"
STATUS - INSTALLED IN USA PLANT
MULTIPLE TOOLING SIZES & SPARE RAFT AVAILABLE

LINE COMPONENTS:

15,000# DOUBLE END UNCOILER WITH HOLDDOWN ROLL
HYDRAULIC EXPANSION
ID RANGE - 19.5"-24.5"
COIL OD - 72"
STRIP WIDTH - 18"
WEIGHT PER SIDE - 15,000#

DOUBLE COIL PEELER
TOP AND BOTTOM FEED
5" DIA. X 20" FACE PINCH ROLLS

5 ROLL FLATTENER
2 OVER 3 ROLLS
5" DIA. X 20" FACE

GUILD MODEL "ME" COMBINATION SHEAR & END WELDER
STRIP WIDTH RANGE - 7" - 15"
STRIP THICKNESS RANGE - .065"-.267"
WELD PROCESS - TIG/TUNGSTEN ARC - INERT GAS SHIELD
MAXIMUM YIELD - 50,000 PSI AT .267" MATERIAL
ONE MILLER SYNCROWAVE 351 DC WELD POWER SOURCE & TUNGSTEN WELD TORCH

FIVE STAND BREAKDOWN SECTION
4-ROLL HORIZONTAL ENTRY GUIDE ROLLS
2-SIDED BRUSHING STAND
4" SHAFT DIAMETER
SINGLE POINT ADJUSTMENT
SIDE ILDER STANDS AFTER STANDS 2-5
TOP AND BOTTOM UNIVERSAL SHAFTS
MOTOR 15 HP, 1150/2000 RPM, 500 VOLTS

THREE STAND FIN SECTION
4" SHAFT DIAMETER
SINGLE POINT ADJUSTMENT
THREE SIDE IDLER STANDS
TOP AND BOTTOM UNIVERSAL SHAFTS
MOTOR 15 HP, 1150/2000 RPM, 500 VOLTS

SAF & (TIG/PLASMA/TIG) TRICATHODE TUBE WELDING SYSTEM
ONE E-25 TRICATHODE TORCH & ONE TIG/PLASMA/TIG TORCH
4-ROLL WELD BOX
3-ROLL IRONING PASS
ID/OD BEAD ROLLING
PLYMOVENT OVERHEAD EXHAUST COLLECTION SYSTEM

TWO STAND PULLOUT SECTION
4" SHAFT DIAMETER
SINGLE POINT ADJUSTMENT
TWO SIDE ILDER STANDS
TOP AND BOTTOM UNIVERSAL SHAFTS
4-ROLL SINGLE SIDED TURKSHEAD
MOTOR 10 HP, 1150/2000 RPM, 500 VOLTS

300KW TOCCO INDUCTRON II MPS BRIGHT ANNEALING SYSTEM
UNIT PROVIDES REDUCING AND INERT ATMOSHERE (HYDROGEN AND NITROGEN) FOR BRIGH

ANNEAL FINISH
GAS MIXING PANEL
EIGHT (8) TOTAL UNITS WITHIN SYSTEM WITH WATER COOLING
3' WATER QUENCH EXIT WITH AIR KNIFE
SYSTEM INCLUDES:
ENCUR WORK STATION
ENCUR REMOTE OPERATORS PANEL & ELECTRICAL PANEL
IRCON INFRARED TEMPERATURE PYROMETER
ENCUR DISTILLED WATER RECIRCULATOR
THREE (3) ENCUR INDUCTORS
EVAPCO WATER COOLING TOWER - 6' W X 4' L X 8' 7" h
UPTON SUMP PUMP - 4' W X 5' L X 5' H

THREE STAND SIZING SECTION WITH TURKSHEAD
4" SHAFT DIAMETER
SINGLE POINT ADJUSTMENT
THREE SIDE ILDER STANDS
TOP AND BOTTOM UNIVERSAL SHAFTS
SINGLE SIDED 4-ROLL TURKSHEAD
MOTOR - 15 HP, 1150/2000, 500 VOLTS

EDDY CURRENT TESTING NDT SYSTEM

WET FLYING ABRASIVE CUTOFF
DIAMETER OF DISC - 26"
DIE CLAMPS - 4
CUTTING TOLERANGE - +/- 0.000"-0.250" AT 12 FPM
RPM - 1100

45' DOUBLE DUMP RUNOUT TABLE
PADDLE KICKOFFS

SPARE RAFTS

TOOLING

HYDRAULICS, CONTROLS, ELECTRICS AND DRAWINGS FOR MILL OPERATION

This machine is listed for sale by National Machinery Exchange Inc located in Newark, New Jersey
