4' x 11 13/16", JET, 2 1/2-5HP/460/3PH,37 1/2"Spindle to Table,BRAND NEW Other Nevins Machinery Concept - $RFQ

Item Number: #00068849
4' x 11 13/16&quot;, JET, 2 1/2-5HP/460/3PH,37 1/2&quot;Spindle to Table,BRAND NEW Other Nevins Machinery Concept





4' x 11 13/16", JET, 2 1/2-5HP/460/3PH,37 1/2"Spindle to Table,BRAND NEW Other Nevins Machinery Concept

Stock Code:  480023
Price: $RFQ
Subcategory:

Radial Drills

Manufacturer:  Jet
Model:  J-1230R-4
Condition: New















swpc(1,"http://uen.hsix.com/machpict/013510/480023.jpg")

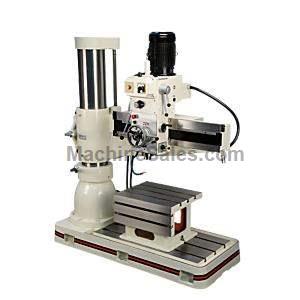

Brand New Jet 4’ Arm Radial Drill #480023





MAKE: Jet


MODEL: J-1230R-4


Part Number: 320037


Motor: 2-1/2 to 5 HP, 460V, 3 Ph


Number of Spindle speeds: 12 (44 - 1500)


Spindle Taper: MT-4


Max Distance Spindle to Table ( in.): 37-1/2


T-Slots Number and Size (in.): 3 & 3/4


Column Diameter (in.): 11-13/16


Drilling Capacity Cast Iron (in.): 2-5/16


Drilling Capacity Mild Steel (in.): 1-7/8


Tapping Capacity Cast Iron (in.): 1-1/2


Tapping Capacity Mild Steel (in.): 1


Boring Capacity Steel (in.): 3-3/8


Boring Capacity Cast Iron (in.): 4-3/4


Distance Column to Spindle (max/in.): 46


Distance Column to Spindle (min/in.): 13-3/4


Travel of Head Horizontal (in.): 35


Distance Base to Spindle (max/in.): 54


Distance Base to Spindle (min/in.): 19-3/8


Arm Travel Vertical (in.): 35


Quill Travel (in.): 9-7/8


Quill Travel w/ Powerfeed engaged (in.): 9-7/16


Quill Down feed Rates (IPR): 3 (.002, .004, .006)


Elevating Motor: 1 HP


Base Dimensions (in.): 67-3/4 X 28 X 7


Coolant Pump Motor: 1/8 HP


Table Dimensions (in.): 25 x 20-1/2 x 16-15/16


Overall Dimensions: 80 x 39 x 89


H x W x L 88.5”H X 32.25”W X 80”L


Net Weight: 5070 Lbs.

This machine is listed for sale by Nevins Machinery Concepts located in Brockton, Massachusetts
