Brakes & Folding Machines
155 Ton x 8' - 13' U.S. INDUSTRIAL® CNC Hydraulic Press Brakes - $RFQ
Item Number: #

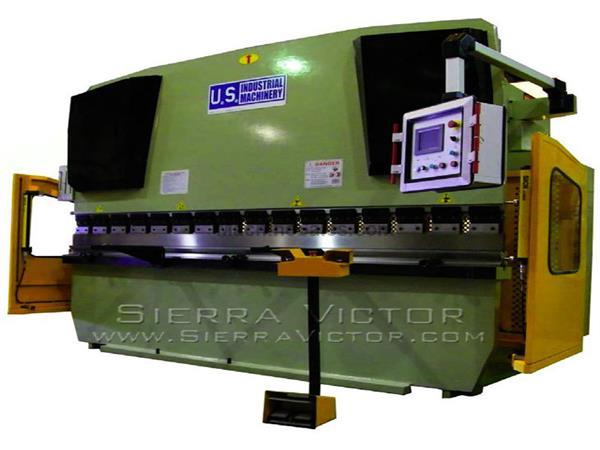

155 Ton x 8' - 13' U.S. INDUSTRIAL® CNC Hydraulic Press Brakes
CALL FOR AVAILABILITY AND BEST PRICING!
Ram Deflection Adjustment
Mechanical Ram Depth Control
Massive Torsion Bar for Parallelism
Forged Heavy Duty Cylinder and Cylinder Body
Three Speed Ram
Rapid Approach, Bending Cycle and Rapid Retreat
Bottom Time Delay
All Steel Construction
Inching, Single Cycle and Continuous Operation
Ram takes standard American Tang Tooling (1/2” x 5/8”)
Space between Ram Tool Clamps allows for deep box bending
Bed has slot for standard American tang tooling
Bed also holds tooling with capture clamps
Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel *SPECIAL NOTE* The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose.
THERE IS NO WARRANTY ON THESE ITEMS.
*For non-CNC or other configurations and options, please call to check delivery.
*CNC 2-axis Color Graphic Computer Control: Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code And Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup
*Sick model 4000 light curtain system
NOTE: These items are STANDARD and included in price
Working pressure: 155 tons
Length of working table:
Distance between housings:
Throat depth: 12.5"
Stroke adjustment of ram:
Ram travel: 5.9"
Open height: 16.3"
Rapid Ram Travel Speed: 2.4”/sec.
Rapid Ram Retreat Speed: 2.0”/sec.
Pressing Speed: Dependent on Tool Load
Backgauge Travel: 24"
Hydraulic oil capacity
60 gals. (USHB155-8)
79 gals. (USHB155-10)
97 gals. (USHB155-13)
10 HP (USHB155-8)
15 HP (USHB155-10)
15 HP (USHB155-13)
120" x 64" x 101" (USHB155-8)
148" x 64" x 101" (USHB155-10)
179" x 64" x 101" (USHB155-13)
17,640 lbs (USHB155-8)
22,046 lbs (USHB155-10)
23,148 lbs (USHB155-13)
Pilz PSENvip LED Safety Guarding
Third Axis (Back Gauge Height)
CNC Controlled Hydraulic Auto Crown
Servo Back Gauge
Training in our Memphis, TN Showroom
Training at customer site, less than 300 miles from Memphis
Training at customer site, more than 300 miles from Memphis
Training outside continental USA
USHB155-8: 155 Ton x 8'
USHB155-10: 155 Ton x 10'
USHB155-13: 155 Ton x 13'
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
