FEATURES:

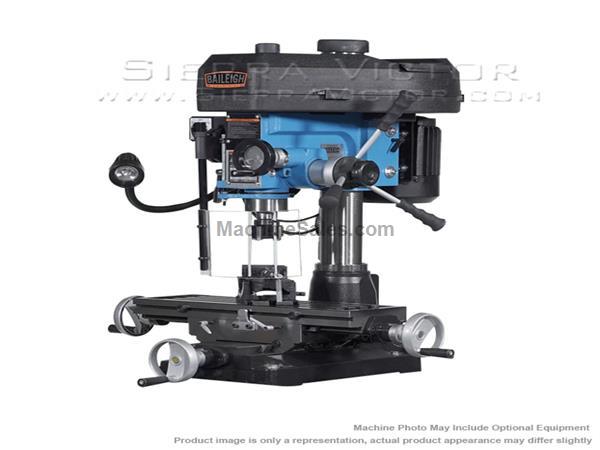

The Baileigh VMD-15 Vertical Mill Drill is the perfect option when operators need to do some light-duty milling that doesn't require a full-size milling machine but still allows the use of R-8 tooling. The ability to drill and mill with one machine saves time and money. The VMD-15 Vertical Mill Drill is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available if bench space is at a premium.
Efficiency
Belt-drive, step pulley system allows for rapid, easy speed changes to work with a variety of materials
Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
Drill press style angle vise locks material in place
Drill chuck & arbor allow easy changes from drilling to milling
360° head swivel allows milling or drilling of oversized material
Articulated LED lamp illuminates your workpiece
Performance
Single piece, the cast iron column provides stable support for precise milling or drilling reducing deflection
Easy-to-read external depth gauge for accurate milling & drilling

SPECIFICATIONS:
Drilling Capacity (In.): 1.5
Quill Diameter (In.): 2-7/16
Max Distance Spindle to Table (In.): 14-1/2
Range of Spindle Speeds (RPM): 110 - 2580
Spindle Taper (In. x TPI): R8
Spindle Travel (In.): 4.25
Swing (In.): 14-1/2
T-Slots Number and Size (In.): 4 and 9/16
Table Size (L x W) (In.): 7-1/2 x 23
12 speeds: 110 to 2580 rpm
Number of Spindle Speeds: 12
Motor (HP): 1
Column Diameter (In.): 3-5/8
Work Table Weight Capacity (Lbs.): 350
Base Dimensions (In.): 12-1/2 x 19-3/4

OPTIONAL ITEMS:
Stand

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

This machine is listed for sale by Sierra Victor Industries located in Port Orange, Florida
