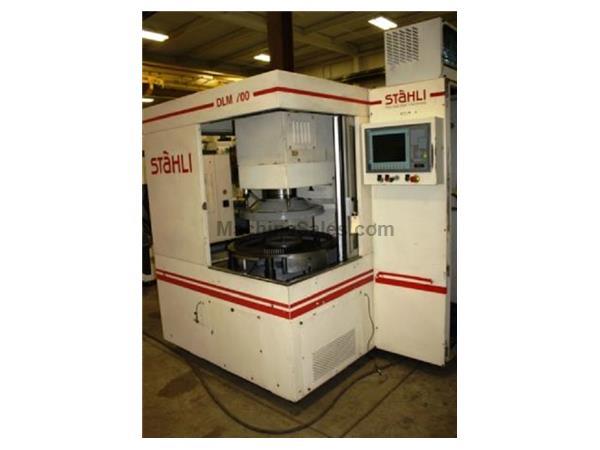

28",Stahli,DLM 700-3,Dbl.SideHone/FineGrind,Siemens Simatic,Chilr,200 |
|
| Stock Code: |
44990 |
| Price: | $RFQ |
| Subcategory: | Miscellaneous Machinery |
| Year of Manufacture: |
2002 |
| Manufacturer: |
Stahli |
| Model: |
DLM 700-3 |
| Condition: | Used |
Serial No. 02.06.909 New - 2002
SPECIFICATIONS:
Working Range:
Wheel Diameter - Maximum.........................................27.559"/700mm
Wheel Ring Width - Maximum........................................7.874"/200mm
Work Piece Height - Maximum.......................................3.937"/100mm
Speeds:
Top Wheel - Continuously Variable..................................0 - 200 RPM
Bottom Wheel - Continuously Variable...............................0 - 200 RPM
Center Drive - Continuously Variable...............................0 - 100 RPM
Drive Power:
Top and Bottom Wheels - Each.....................................12.7 HP/9.5kW
Center Drive......................................................5.0 HP/3.8kW
Operating Pressure Adjustment - Continuously Variable...0-1300 daN (Pneumatic)
Electrical Equipment:
Equipment w/DIN 57 113/VDE Completely Installed
Main Power.........................................................220VAC/60Hz
Control Voltage...................................................V 230/50+24=
Connected Load/Power Requirement......................................23kW/80A
Cable-Cross..............................................................25mm2
Operating Pressure:
Air Connected - Minimum..................................................6 Bar
Digital Measuring Instrument:
Range.............................................................0.3937"/10mm
Accuracy...................................................0.00003937"/0.001mm
Workplace-Based Noise Emission Value:
AP 1 - Idle Operation....................................Approximately 75dB(A)
Working Noise............................................Approximately 78dB(A)
Machine Dimensions without Coolant System................86.6"L x 76"W x 105"H
Weight without Accessories...................................5,071 Lbs/2300 kg
EQUIPPED WITH:
Siemens Simatic Panel PC Controller
Loading and Unloading Tables
Koolant Koolers Model KV-1000 Chiller
20" Inspection Straightedge with (2) Dial Gauges
*Preliminary Specifications Subject to Verification.
