Machine Tools > Keyseaters > Keyseaters    < Back

NEW - HANSFORD DAVIS DA-15B KEYSEATER - 1/16" - 1-1/2" - $RFQ

Item Number: #00068408
NEW - HANSFORD DAVIS DA-15B KEYSEATER -  1/16&quot; - 1-1/2&quot;

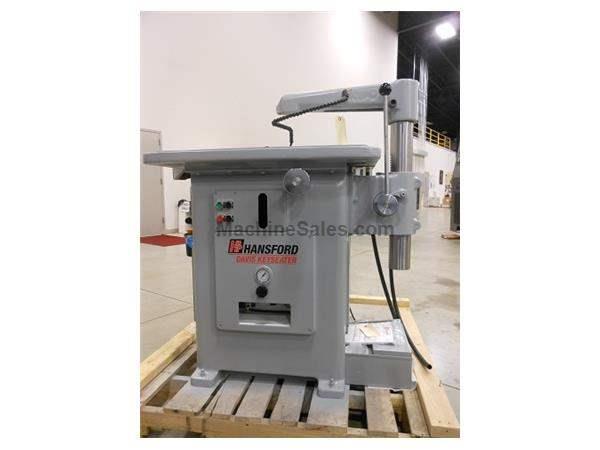

NEW - HANSFORD DAVIS DA-15B KEYSEATER - 1/16" - 1-1/2"

Stock Code:  NW-19770
Price: $RFQ
Subcategory:

Keyseaters

Keyway width1.5"
Keyway length16"
Manufacturer:  Hansford
Model:  DA-15B
Condition: New

SPECIFICATIONS
KEYWAY CUTTING CAPACITY (STEEL): 1/16″ TO 1 1/2″
THROAT DEPTH (FROM FACE OF 1″
WIDE CUTTER TO ARMPOST): 19″
MAXIMUM HEIGHT OF WORK
FROM TABLE SURFACE: 12″
MAXIMUM LENGTH OF CUT
(WITH 3/4″ THICK BUSHING HOLDER)
16″ LONG CUTTER: 4″
20″ LONG CUTTER: 8″
24″ LONG CUTTER: 12″
TABLE SIZE: 20″ X 31″
TABLE MOVEMENT: 1 1/2″
STROKE: 4 1/2″
STROKES PER MINUTE
1800 RPM MOTOR: 45 SPM
W/VARIABLE SPEED DRIVE: 11 56
AIR PRESSURE REQUIRED FOR AUTOMATIC FEED: MIN. 80 PSI
AIR CONSUMPTION: 3 SCFM
MOTOR: 2 HP
NUMBER OF T SLOTS IN TABLE: 3

GENERAL
NET WEIGHT: 1,250 LBS
DOMESTIC CRATING: 1,350 LBS
DIMENSIONS OF SHIPPING CRATE: 40″ X 44″ X 48″
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC

STANDARD EQUIPMENT
VARIABLE SPEED DRIVE
AUTOMATIC FEED
AUTOMATIC STOP
COOLANT SYSTEM
MICROMETER DEPTH STOP
GENERAL PURPOSE ELECTRICAL CONTROLS WITH MAGNETIC STARTER
110 VOLT START, STOP, JOG / HAND / AUTO, AUTO STOP, ON/OFF COOLANT SWITCHES MOUNTED ON MACHINE

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
