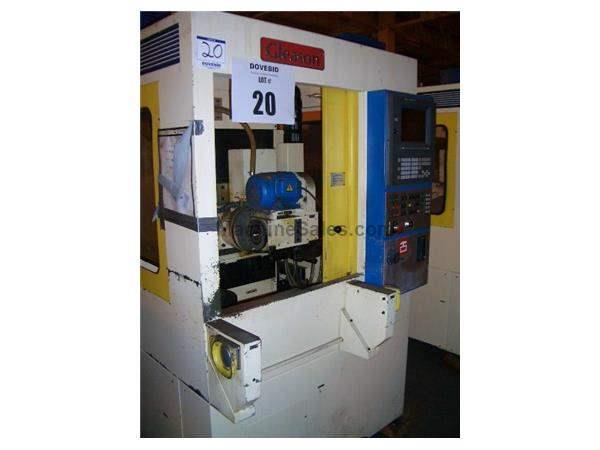

GTR250VG, GLEASON 5-AXIS, CNC GEAR CHAMFER DEBURR POINT ROUND MACHINE NEW 2000 - $RFQ

Item Number: #00060764
GTR250VG, GLEASON 5-AXIS, CNC GEAR CHAMFER DEBURR POINT ROUND MACHINE NEW 2000





GTR250VG, GLEASON 5-AXIS, CNC GEAR CHAMFER DEBURR POINT ROUND MACHINE NEW 2000

Stock Code:  7359
Price: $RFQ
Subcategory:

Gear Chamfering / Pointing / Rouding

Manufacturer:  Gleason
Condition: Used

The GTR 250VG is a heavy duty chamfering and deburring machine developed

for spur, helical, bevel and hypoid gears and pinions. The 5 Axis CNC machine

uses a high speed milling process that is capable of chamfering the complete

tooth at both the toe and heel of bevel or hypoid gears. The GTR 250VG can
also round and point gear teeth on external and internal parallel axis gears

and splines.
Gear in excess of 12" diameter can be cut. The gear configuration and

type of cut dictates the actual size limitation. The largest workpiece is

specified at 130 Lbs. The machine is not limited by module, diametral pitch or

number of teeth.

EQUIPPED WITH:

GE Fanuc Series 16M CNC Control Lube System
Hydraulic Chuck Foot Pedal Clamp
Stock Divider 480 Volt-3PH-60 Cycle
Work Light Door Interlock
2-Hand Operation Coolant Pump Tank
RS232 Pulse Generator
Hydraulic System Topaz Model MP1 UPS System
Palm Button Controls Total Enclosure Guarding
Continuously Variable Cutter Speed From 0-5000RPM Quick Change Cutter Spindle
Work Spindle W/ Gleason No. 39 Taper
Machine Mounted Chip Removal System
Hydraulic Workpiece Clamping
Choice Of Language CNC Display

SPECIFICATIONS:

Maximum Shaft Length..............................19.7"
Maximum Face Width................................14"
Machine Axis (Cutting Speeds).....................0 to 5000 RPM
Cutter Head Swivel................................+25 to -45 Degrees
Maximum Cutter Head Vertical Travel...............14"
Maximum Cutter Head Cross Travel..................12.6"
Maximum Workhead Cross Travel.....................9"
Work Spindle Taper................................Gleason No.39
Cutter Spindle Taper..............................ISO No. 40
Floor Space.......................................44" X 70"
Weight............................................5060 Lbs.

This machine is listed for sale by Gibbs Machinery Company Inc. located in Warren, Michigan
