20" x 60" BAILEIGH® Gap Bed Lathe - $RFQ

Item Number: #00065868
20&quot; x 60&quot; BAILEIGH&#174; Gap Bed Lathe

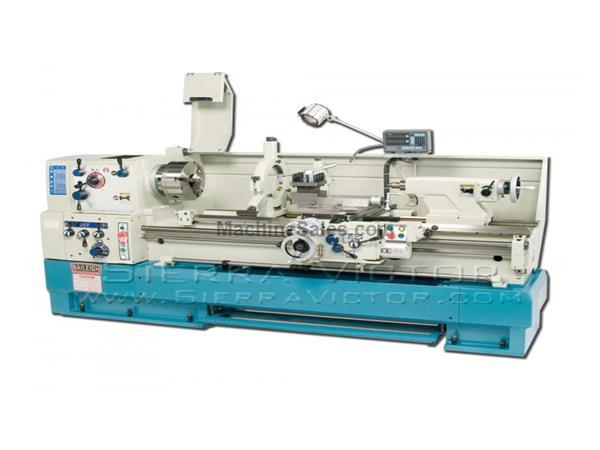

20" x 60" BAILEIGH® Gap Bed Lathe
Stock Code:  PL-2060
Price: $RFQ

Gap Lathes - Sliding Bed

Manufacturer:  Baileigh
Model:  PL-2060
Condition: New

The PL-2060 gap bed lathe has a 20” swing and 60”s between the centers and is the perfect size for almost any machine shop or fabrication shop where a precision cut is the most important thing. The PL-2060 has a 15 hp motor that is run on220 volts of three phase power. This is more than enough power to handle the most demanding jobs.
The body of the PL-2060 is made from cast iron that is precisely machined to exacting tolerances to ensure a rigid and stable platform in which to work. Baileigh Industrial only uses the best casting suppliers for their lathes. The ways are polished and have integrated wipers to keep them moving like the day they were ne for years to come.
Other key features of the PL-2060 gap bed lathe are digital readouts for both the x and y axis, making it easier than ever to make perfect cuts. A 12” 3 jaw chuck with a 3-1/8” bore is also standard. Baileigh Industrial tries to include all that is necessary to get your machine up and running, this includes longitudinal rapid traverse , 8" back plate, coolant system, steady rest, follow rest, headstock chuck guard with micro switch, micrometer saddle stop, rear splash guard, and halogen work light.

Digital readouts for both the x and y axis
12” 3- Jaw chuck with a 3-1/8” bore
Longitudinal rapid traverse
8" Back plate
Coolant system
Steady rest
Follow rest
Headstock chuck guard with micro switch
Micrometer saddle stop
Rear splash guard
Halogen work light

Max Swing Over Bed: 20"
Max Swing Over Cross Slide: 13"
Max Swing in Gap Diameter: 26.375"
Max Swing in Gap Length: 7.0625"
Center Height: 10"
Center Length: 60.25"
Bed Width: 16.125"
Spindle Bore: 3.125"
Spindle nose: D1-8"
Spindle Taper (nose): #7 Morse
Spindle Taper (sleeve): #5 Morse
Speed Number: 12
Speed Range: 20 - 1,550 rpm
Cross Slide Width: 7.08"
Cross Slide Travel: 12.5"
Compound Travel: 10"
Lead Screw Diameter: 1.5"
Lead Screw Thread: 4 T.P.I.
Threads Imperial (qty / speed): 60 / 2-112 T.P.I
Threads Metric (qty / speed): 60 / .2-14mm pitch
Threads Diametrical (qty / speed): 50 / 4-112 D.P.
Threads Module (qty / speed): 50 /.2-7 M.P.
Longitudinal Feeds Imperial (qty / speed): 50 / .0014”-.0387”/rev.
Longitudinal Feeds Metric (qty / speed): 50 / .037-1.04mm/rev.
Cross Feeds Imperial (qty / speed): 50 / .0007”-.01935”/rev.
Cross Feeds Metric (qty / speed): 50 / .0185-.52mm/rev.
Tailstock (quill) Diameter: 2.9375"
Tailstock (quill) Travel: 6.3125"
Tailstock (quill) Taper: #5 Morse
Motor Coolant: 1/8 hp
Motor Main: 15 hp
Power Requirement: 220v / 3 phase
Shipping Dimensions (L/W/H): 121" / 54" / 67"
Shipping Weight: 5,456 lbs

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.
