20" JET® Step Pulley Drill Press - $RFQ

Item Number: #00076569
20&quot; JET&#174; Step Pulley Drill Press

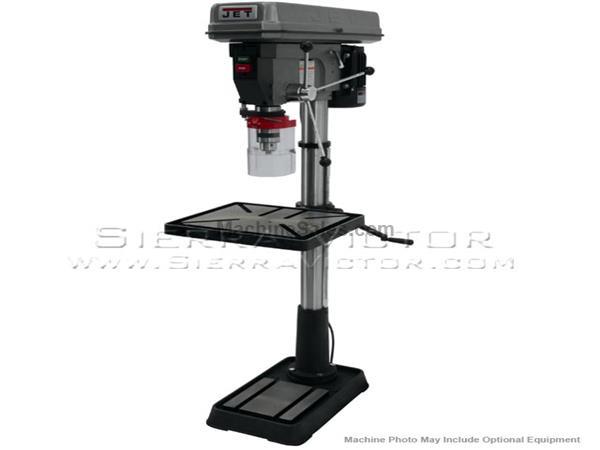

20" JET® Step Pulley Drill Press
Stock Code:  354170
Price: $RFQ

Drilling & Tapping Machines

Manufacturer:  Jet
Model:  JPD-20MF
Condition: New

Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
Safety spindle guard
Rotating, 45° tilting, crank-operated worktable with quick release clamp
On/off switch located on front of the drill press head stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Spindle is supported by high quality ball bearings
Built-in work lamp on all models, bulb not included.
Drill chuck and key included

Drills to Center of Circle (in.): 20-1/2
Drilling Capacity Cast Iron(in.): 1
Drilling Capacity Mild Steel (in.): 3/4
Spindle Travel (in.): 4-5/8
Spindle Distance to Base (in.): 46-3/4
Spindle Distance to Table (max./in.): 29-1/8
Table Size (in.): 18-1/2 x 16
Spindle Taper: MT-3
T-Slots Number and Size (in.): 6 & 1/2
T-Slot Centers (in.): 3-1/2
Work Table Weight Capacity (lbs.): 80
Column Diameter (in.): 3-3/8
Base Slots Number & Size (in.): 2 & 5/8
Range of Spindle Speeds (RPM): 150–4,200
Base Work Table (in.): 13 x 8-1/2
Base Size (in.): 13-3/4 x 22-3/4
Motor: 1-1/2HP, 1Ph , 115/230V, Prewired 115V
Overall Dimensions (in.): 31-1/2 x 18-1/2 x 66
Net Weight (lb.): 282

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 2 YEAR – Limited
