10" Swing 24" Centers Brown & Sharpe 1024U OD GRINDER, SWING DOWN ID., HYD. TABLE, PICK & PLUNGE, RAPID, - $RFQ

Item Number: #00030468
10&quot; Swing 24&quot; Centers Brown & Sharpe 1024U OD GRINDER, SWING DOWN ID., HYD. TABLE, PICK & PLUNGE, RAPID,





10" Swing 24" Centers Brown & Sharpe 1024U OD GRINDER, SWING DOWN ID., HYD. TABLE, PICK & PLUNGE, RAPID,

Stock Code:  149158
Price: $RFQ
Subcategory:

Cylindrical Universal Grinders

Swing10"
Centers24"
Year of Manufacture:  1980
Manufacturer:  Brown & Sharpe
Model:  1024U
Condition: Used

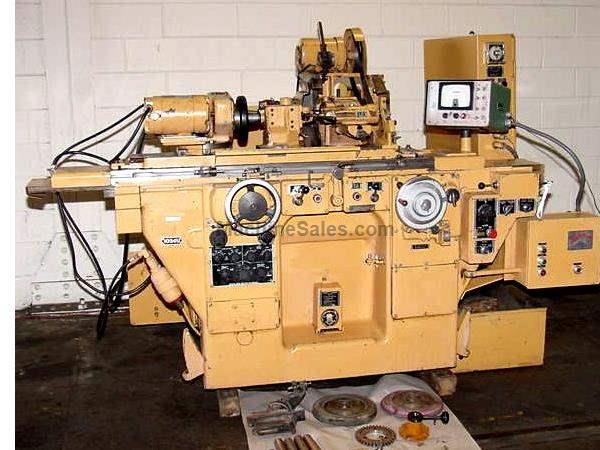

10" X 24" BROWN & SHARPE UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

  MODEL: 1024U   S/N: 521-1024-281    NEW: 1980

** FULL AUTO CYCLE (PICK, PLUNGE, RAPID, SPARKOUT TIMER)**

  SWING OVER TABLE .................................... 10"
DISTANCE BETWEEN CENTERS, NOMINAL .................... 24"
DISTANCE BETWEEN CENTERS, MAXIMUM ................ 26-3/4"

  WHEELHEAD SPINDLE SPEEDS (3) ...... 2100, 2400 & 2800 RPM
GRINDING WHEEL SIZE ........................ 12" X 1" X 5"
MINIMUM GRINDING WHEEL WIDTH ........................ 3/8"
SWIVEL AT THE WHEELSLIDE ........... 90 DEGREES EITHER WAY
WHEEL SPINDLE SWIVELS .............. 90 DEGREES EITHER WAY

  INFINITELY VARIABLE SPINDLE SPEEDS ........ 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER ....................... A2-5"
HEADSTOCK SWIVELS EITHER SIDE OF ZERO ......... 90 DEGREES

  INFINITELY VARIABLE TABLE SPEED .......... 3" TO 150" IPM
TABLE PER REV. OF HANDWHEEL:
SLOW ................................................ 0.1"
FAST ................................................ 1.5"
DWELL AT EACH OR ALTERNATE TABLE REV. ..... 0 - 2-1/2 SEC.
TABLE SWIVEL, SCALES FOR ANGULAR SETTING ...... 8-1/4 DEG.
SCALES-TAPER PER FT. .............................. 3-1/2"

  MAX. TRAVEL OF WHEELSLIDE ............................ 5"
CROSSFEED HANDWHEEL GRAD. ....................... 0.00002"
AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER
  OR WORK AT EACH OR ALTERNATE REVERSALS .. 0.0001" - .003"
HAND FEED PER REV. OF HANDWHEEL:
SLOW ................................................ 0.1"
FAST ................................................ 0.3"

  TAILSTOCK SPINDLE TAPER .........................#7 JARNO
TAILSTOCK SPINDLE TRAVEL ............................ 5/8"

  APPROXIMATE WEIGHT ............................ 5,100 LBS

MACHINE FEATURES:
DUAL RIGHT OR LEFT END WHEEL MOUNTING
SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
  SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
  COMBINATION STRAIGHT AND TAPER GRINDING,
  EXTERNAL OR INTERNAL.

INFEED HANDWHEEL GRADUATED TO READ TO 0.000020"
HYDRAULIC TABLE TRAVERSE
AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS
AUTO PLUNGE INFEED
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
SPARKOUT TIMER
ADJUSTABLE TABLE DWELL
SELF-CONTAINED HYDRAULIC SYSTEM
OIL CHILLER UNIT (FAN COOLED)


EQUIPPED WITH:
B & S "HYDROSTATIC" WORKHEAD w/DUAL DEAD/LIVE
  HEADSTOCK SPINDLE
COLLET CHUCK
3-POINT STEADY REST
2-POINT STEADY REST
"TRABON" AUTOMATIC LUBRICATION SYSTEM
COOLANT SYSTEM
MOTORS ARE 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

** SUPERIOR CONDITION FROM A DEFENSE CONTRACTOR  **

  ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
