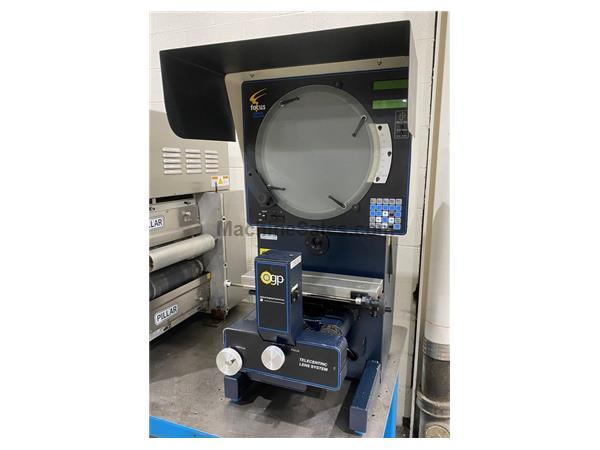

New - 2005
Serial No. FC2001399

SPECIFICATIONS:
Screen Diameter............14"
Size of Measuring Table............17-3/4" X 4"
Measuring Capacity:
- Longitudinal Table Travel (X)............8"
- Vertical Table Travel (Y) ....... 5"
- Focus Travel............1.5"
Worktable Helix Motion............+/- 6.5°
Angular Measuring Capacity............360° Chart Rotation
Throat Clearance............9.8"
Load Capacity on Table............45 LBS.
Machine Dimensions - Approximate............33" L-R x 22" F-B x 41"H
Machine Weight - Approximate............315 Lbs.
Electrics............115V/1Ph/50/60Hz

FEATURES & BENEFITS:
- Telecentric Lenses - Magnification Doesn't Change When Focusing
- Constant Working distance - Able to Measure Larger Parts at High Magnifications
- Corrected Image
- Coaxial Surface Illumination - No Fiber Optics to Adjust for Each Part

EQUIPPED WITH:
- OGP Computational 2-Axis Digital Readout System with Programmable Geometric Functions
- OGP "PROJECTRON V" Internal Optical Edge Detection
- XY Scale Resolution 0.000040" (1um)
- Tungsten Halogen Projection
- Tungsten Halogen Surface Illumination
- Table has Fine Adjustment Knobs (XY) and Quick Release (X)
- Helix Motion - Pivoting Worktable with +/- 6.5° Motion
- Three Position Manual Lens Turret
- (3) Lenses, 10X, 20X & 50X

*Preliminary specifications subject to verification.

This machine is listed for sale by Liberty Machinery Company located in Lincolnshire, Illinois
