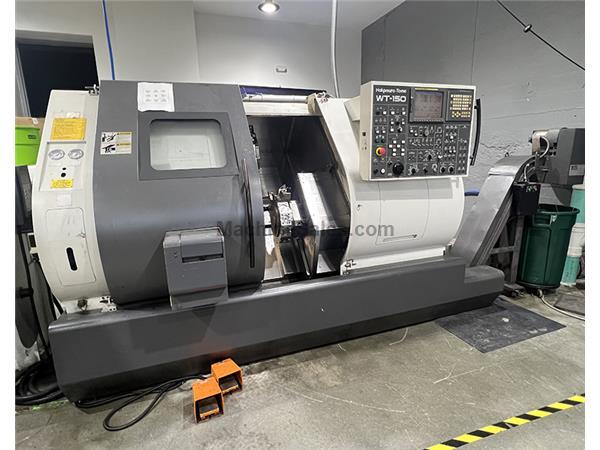

2004 Nakamura Tome WT-150MMY Twin Spindle, Dual Turret, & Live Tooling CNC Lathe



Specifications:

Bar Capacity                      2”

Chuck Size                        6”

Max. Turning Diameter             7.48”

Max. Swing                        7.48”

Max. Turning Length               15.75”

Distance Between Spindle Nose     29.52” Max. / 7.87” Min.

X1-Travel                         6.2”

X2-Travel                         6.59”

Z1-Travel                         18.3”

Z2-Travel                         18.31”

B-Axis on Subspindle              21.65”

C- Axis Contouring (L/R Spindles) 0.001 Degree

Y- Axis Travel on Upper Turret    2.75”

Spinlde Nose (L/R Spindles)       A2-5

Spindle Speed (L/R Spindles)      5,000 RPM

Turning Spindle Motor (L/R)       20/15 HP

Upper/ Lower Drive Motor          7.5 HP

Number of Turret Stations         12 Tools per Turret

Turret Index Time                 0.15 Sec/Station

Live Tooling Motor                7.5 HP

Live Tooling Speeds               3,600 RPM

Approx. Machine Dimensions        170”x86”x73”

Approx. Machine Weight            20,000 lbs.



Equipped With:

Fanuc 18i-TB CNC Control

Twin Spindle

Dual Turret

Live Tooling

Right Hand Discharge Lift-Up Chip Conveyor

Y-Axis Upper Turret

C-Axis (L/R)

(8) Live Face Drill Holders

(8) Live Cross Drill Holders

All Available Static Toolholders

LNS Quick Six Barfeed
