Machine Tools > Lathes & Turning Centers > CNC Turning Centers    < Back

SMS Accu-Cell AC-300-2 - $RFQ

Item Number: #00077049

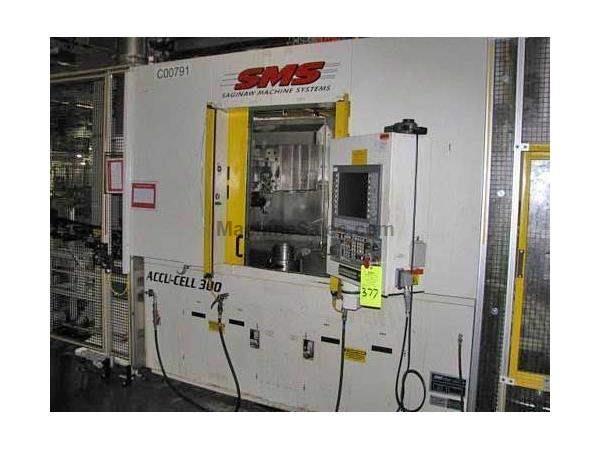

SMS Accu-Cell AC-300-2





SMS Accu-Cell AC-300-2

Price: $RFQ
Subcategory:

CNC Turning Centers

Year of Manufacture:  2005
Manufacturer:  Sms
Model:  Accu-Cell AC-30
Condition: Used

Category
Lathes - Twin Spindle, Vertical Turning
Manufacturer
SMS
Model
Accu-Cell AC-300-2
Serial Number
79453
Year
2005
Control
Fanuc 160i-T
Spindle Spacing
21.50
in
546.00
mm
Swing
16.00
in
406.40
mm
Maximum Turning Diameter
16.00
in
406.00
mm
Maximum Turning Length
14.00
in
355.60
mm
Spindle Speed
0 - 3600 RPM Infinitely Variable
Chuck Type
Speed Grip Power Collet Chucks
Turret Number of Sides
12
Number of Index Positions
12
Z – Vertical Slide Travel
14.00
in
355.60
mm
X – Horizontal Saddle Travel
8.00
in
203.20
mm
Rapid Travel Speed
650.00
in/min
16510.00
mm/min
Type
Turret
Ram Size
12
Z2 – Vertical Slide Travel
14.00
in
355.60
mm
X2 – Horizontal Saddle Travel
8.00
in
203.20
mm
Rapid Travel Speed
600.00
in/min
15240.00
mm/min
Type
Turret
Power
3 Phase / 60hz / 480 Volt AC Existing
Additional
In-line computerized gauging station, Mayfran coolant pumpback system with
16" 2.2 kw single horizontal chip shredder, GE Fanuc series 90-30 PLC control,
air conditioner for electrical cabinet, additional 2 arm overhead gantry robot
transfer systems; linear scales for x and z axis; air gauge, flex gauge
Machine Length
102.00
in
2590.80
mm
Machine Width
124.00
in
3149.60
mm
Machine Height
126.00
in
3200.40
mm
Weight
22000
lbs
10000
kg
Condition
Excellen

This machine is listed for sale by Hadanich Machine located in Washington, Pennsylvania
