MAZAK INTEGREX 200-3ST MULTI-AXIS CNC TURNING & MILLING CENTER - $RFQ

Item Number: #00080032

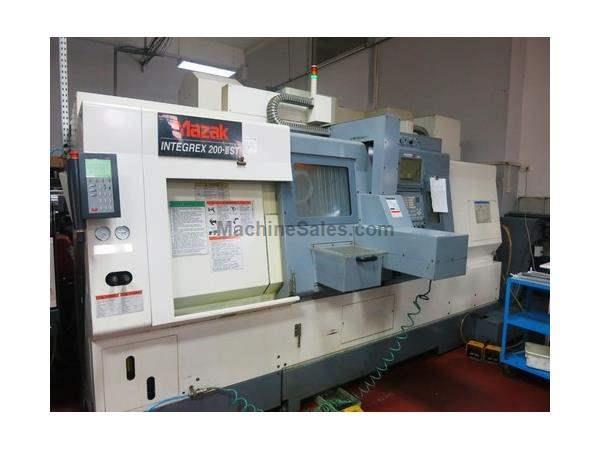

MAZAK INTEGREX 200-3ST MULTI-AXIS CNC TURNING &amp; MILLING CENTER





MAZAK INTEGREX 200-3ST MULTI-AXIS CNC TURNING & MILLING CENTER

Stock Code:  11024
Price: $RFQ
Subcategory:

CNC Combination Lathes

Year of Manufacture:  2003
Manufacturer:  Mazak
Model:  200-3ST
Condition: Used

Play YouTube Video
PROPOSAL Stock 00011024
Quote # 281097
We are pleased to submit for your consideration:

MAZAK INTEGREX 200-3ST MULTI-AXIS CNC TURNING & MILLING
CENTER

SERIAL NUMBER 165243 NEW 2003

GENERAL SPECIFICATIONS:

Max. swing 26"
Max. swing over carriage 19.7" - 26"
Note: Depends upon workpiece length, tool magazine
type and Y Axis position.
Max. cutting diameter: Chucking 26"
Max. cutting length 40"
Max. distance between chuck faces 41.14"
Main Spindle (L):
Spindle nose A2-6
Spindle bore 2.99"
Max. bar work 2"
Spindle speed/ranges 35-5000 RPM/2
Spindle index (programmable) 0.0001 degrees
Spindle horsepower (cont./30 min) 20/30 HP (A.C.0
Spindle torque 258.1 ft-lbs
Second Spindle (R):
Spindle nose A2-6
Spindle bore 2.99"
Max. bar work 2"x34.6"deep from
chuck face
Spindle speed/ranges 35-5000 RPM/2
Spindle index (programmable) 0.001 degree
Spindle horsepower (cont./30 min) 20/25 HP (A.C.)
Spindle torque 241 ft-lbs
Upper Turret and Tooling:
Type of turret 1 position,w/ATC
Magazine capacity 40 Tools
Tool selection method Random
Max. tool dia. w/all pockets full 3.54"
Max. tool dia. w/adjacent pockets empty 4.92"
Max. tool length (from gage-line) 11.8"
Max. tool weight 22 lbs
Rotary tool spindle speed/ranges 12,000 RPM/1
Rotary tool spindle horsepower (20% ED) 20 HP (A.C.)
Rotary tool torque (20% ED) 88.2 ft-lbs

Page 2 of 2

GENERAL SPECIFICATIONS: (Cont.)
Lower Turret and Tooling:
Type of turret Drum
Tool shank height 1.0" x 1.0"
Tool size (boring bar max. diameter) 1.25"
Total number of tools 9
Tool selection method Bi-Directional
Tool Index time (1 ste) 0.14 Seconds
Axis Travels:
B-Axis (.0001 deg. increments) 225 Deg.
Y-Axis +/- 3.15"
X-Axis 22.83"
Z-Axis 41.1"
X2 Axis lower 5.9"
Z2 Axis lower 38.98"
Second headstock W-Axis 41.34"
Axis Rapid Rates:
Y-Axis 1023 IPM
X/X2 Axis 1496 IPM
Z/Z2 Axis 1496 IPM
Second headstock W-Axis 1181 IPM
C-Axis 400 RPM
Machine weight (Approx) 22,440 Lbs.

EQUIPPED WITH:
Mazatrol Fusion 640MT Pro CNC Control

Control Options:
Background Path Check
EIA/ISO
B-Axis Angle Positioning Turning
Mullti ToolHolder/Flash Tool
Shape Comp
2nd Auxi Functions
Y-Axis Control
Synchro Mill Tapping
Direct DWG Size Imput

Page 3 of 3

EUIPPED WITH: (Cont.)

Control Options: Cont.
User Macro, 600 Macro Variables, User macro Interrupt
Work Coordinates Select
Polar Coordinates Input
Cylindrical Interporation
Tool Center Point Control
Simultaneous 5-Axis Control
EIA Helical Interporation & EIA Coordinate Rotation
B-Axis Control
Enhanced Y-Axis Mazatrol (Face 1 and Face 2)
Rotary-Axis Submicron
EIA Helical Tap
Sub C-Axis Control
Rotary-Axis Control
Rotary-Axis Shape Comp & 2nd Turret Mazatrol
KM Type tooling (Upper turret)
Coolant through milling head (up-turret)
1 KG Flood Coolant (lower turret), 2nd Spindle C-Axis 0.0001 degree increment
40 KM-Tool Magazine, B-Axis index 5 degree (coupling clamp)
Chip Conveyor side disposal (hinge type) 40"
Auto chuck Jaws open/close(1 & 2 Spindle)
Operator door interlock with lock-switch
10" Thru Hole chuck B-210
8" Thru Hole Chuck B-208A615, 3.5" FDD Unit
Y-Axis Control, Hyd. Pressure Interlock
213 PSI Thru/Flood coolant (upper turret)/71 PSI Lower
C-Axis 0.0001 deg.Incr.(1st spindle)
B-Axis 0.0001 Deg. Incr N/A Contouring
Lower 9 Position drum turret, Automatic tool eye
Chuck Open/Close confirm (1 & 2 Spindle)
