1977 HARDINGE MODEL HC CHUCKER, 9" - $RFQ

Item Number: #00075184
1977 HARDINGE MODEL HC CHUCKER, 9&quot;

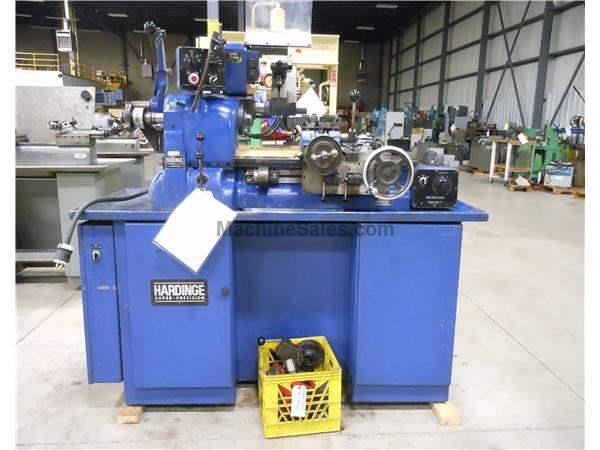

1977 HARDINGE MODEL HC CHUCKER, 9"

Stock Code:  HB-19922
Price: $RFQ
Subcategory:

Chucking Lathes

Year of Manufacture:  1977
Manufacturer:  Hardinge
Model:  HC
Condition: Used

SPECIFICATIONS

SPINDLE CONSTRUCTION: HARDINGE PRELOADED
BALL BEARING
SPINDLE CAPACITY
WITH ROUND 5C HARDINGE COLLETS: 1-1/16"
WITH HEXAGON 5C HARDINGE COLLETS: 7/8"
WITH SQUARE 5C HARDINGE COLLETS: 3/4"
WITH STEP CHUCKS: 1-1/16" TO 6"
WITH JAW CHUCKS: 6"
WITH JAW CHUCKS (THROUGH SPDL): 1-5/32"

SPINDLE NOSE DIAMETER: 2.189"
SPINDLE NOSE THREAD: 2-3/16" - 10 RH
MAXIMUM FIXTURE DIAMETER: 9"
MAXIMUM DIAMETER FOR THREADING: 6" EXTERNAL, 5" INTERNAL
MAXIMUM LENGTH FOR THREADING: 1-3/4"
MAXIMUM DISTANCE FROM FACE OF TURRET
TO SPINDLE: 13"
TRAVEL OF CROSS SLIDE: 4-1/2"
CROSS SLIDE POWER FEED RANGE: 1/4 TO 10 IPM

SPINDLE SPEEDS
3 SELECTOR VARIABLE SPEED MACHINES
LOW SPEEDS: 125 TO 1,100 RPM
HIGH SPEEDS: 1100 TO 3,000 RPM

GENERAL
WEIGHT OF MACHINE: 1,750 LBS
DIMENSIONS: 72" LR X 28" FB X 64" H
ELECTRICS: 440 VOLTS, 3 PH, 60 CYC

EQUIPPED WITH

THREADING ATTACHMENT WITH CHASERS
VERTICAL SLIDE
3 & 4-JAW CHUCKS

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
