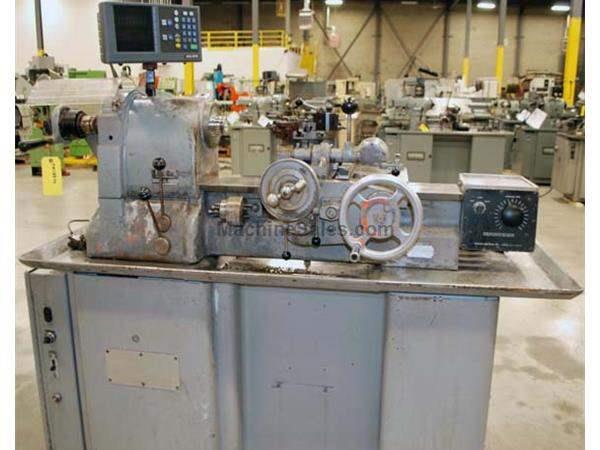

1959 - HARDINGE HC CHUCKER - 9" - $RFQ

Item Number: #00068225
1959 - HARDINGE HC CHUCKER - 9&quot;





1959 - HARDINGE HC CHUCKER - 9"

Stock Code:  TK-18874
Price: $RFQ
Subcategory:

Chucking Lathes

Swing9"
Centers13"
Year of Manufacture:  1959
Manufacturer:  Hardinge
Model:  HC
Condition: Used

SPECIFICATIONS
SPINDLE CONSTRUCTION: HARDINGE PRELOADED BALL BEARING

SPINDLE CAPACITY
WITH ROUND 5C HARDINGE COLLETS: 1-1/16″
WITH HEXAGON 5C HARDINGE COLLETS: 7/8″
WITH SQUARE 5C HARDINGE COLLETS: 3/4″
WITH STEP CHUCKS: 1-1/16″ TO 6″
WITH JAW CHUCKS: 6″
WITH JAW CHUCKS (THROUGH SPDL): 1-5/32″
SPINDLE NOSE DIAMETER: 2.189″
SPINDLE NOSE THREAD: 2-3/16″ – 10 R.H.
MAXIMUM FIXTURE DIAMETER: 9″
MAXIMUM DIAMETER FOR THREADING: 6″ EXTERNAL, 5″ INTERNAL
MAXIMUM LENGTH FOR THREADING: 1-3/4″
MAXIMUM DISTANCE FROM FACE OF TURRET
TO SPINDLE: 13″
TRAVEL OF CROSS SLIDE: 4-1/2″
CROSS SLIDE POWER FEED RANGE: 1/4 TO 10 IPM

SPINDLE SPEEDS
3 SELECTOR VARIABLE SPEED MACHINES
LOW SPEEDS: 125 TO 1100 RPM
HIGH SPEEDS: 1100 TO 3000 RPM

GENERAL
WEIGHT, APPROX: 1750 LBS
DIMENSIONS: 72″ L R X 28″ F B X 64″ H
ELECTRICS: 230 VOLTS, 3 PH, 60 CYC, 1.5 HP

EQUIPPED WITH
ACU-RITE 2-AXIS DRO
8 POSITION TURRET
LEVER OPERATED COLLET CLOSER
COOLANT SYSTEM
6” 2-JAW CHUCK
MISC COLLETS
MISC TURRET TOOLING

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
