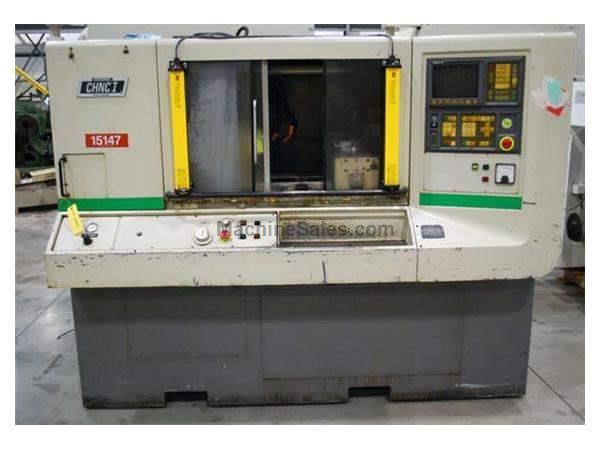

1990 - HARDINGE CHNCI GANG TOOL CNC LATHE - 1.625" 16C COLLET CAPACITY - $RFQ

Item Number: #00068192
1990 - HARDINGE CHNCI GANG TOOL CNC LATHE - 1.625&quot; 16C COLLET CAPACITY





1990 - HARDINGE CHNCI GANG TOOL CNC LATHE - 1.625" 16C COLLET CAPACITY

Stock Code:  DK-18139
Price: $RFQ
Subcategory:

Chucking Lathes

Swing14"
Centers12"
Year of Manufacture:  1990
Manufacturer:  Hardinge
Model:  CHNCI
Condition: Used

SPECIFICATIONS

SPINDLE
SPINDLE CONFIGURATION: ANSI A2-5″
HOLE THROUGH SPINDLE: 1.875″
16C COLLET CAPACITY: 1-5/8″
SPINDLE SPEED RANGE (1-RPM STEPS): 50 TO 5000 RPM
AC SPINDLE DRIVE (30-MINUTE RATING): 10 HP

CAPACITY
MAXIMUM SWING OVER BED: 14.000″
MAXIMUM THREADING DIAMETER: 8.000″
MAXIMUM TURNING DIAMETER: 8.000″
MAXIMUM FIXTURE DIAMETER: 9.000″
MAXIMUM ALLOWABLE WEIGHT ON SPINDLE
(INCLUDING WORKHOLDING DEVICE): 75 LBS.

TURRET
NUMBER OF STATIONS: 8
SQUARE TOOL SIZE (STANDARD): 1/2″
ROUND TOOL DIAMETER (STANDARD): UP TO 3/4″
MAXIMUM X-AXIS TRAVEL: 4.500″
MAXIMUM Z-AXIS TRAVEL: 12.00″
MAXIMUM X-AXIS TRAVERSE RATE: 400 IPM
MAXIMUM Z-AXIS TRAVERSE RATE: 400 IPM
MAXIMUM DISTANCE FROM TURRET FACE
TO SPINDLE: 12.500″
INDEXING TIME (STATION 1 TO 8): 2 SECONDS
INDEXING TIME (STATION-TO-STATION): 1 SECOND

MISCELLANEOUS
EAST INPUT INCREMENT: 0.00010″
LEAST COMMAND INCREMENT: 0.00010″
COMPRESSED AIR REQUIREMENT: 70 MIN. TO 90 MAX. PSI
5 TO 6 SCFM
MAXIMUM RECOMMENDED AMBIENT
OPERATING TEMPERATURE: 113 DEG. F
COOLANT SUMP CAPACITY: 30 U.S. GAL

GENERAL
SKIDDED WEIGHT: 6,000 LBS
MACHINE DIMENSIONS: 91.5″ L X 65″ D X 66″ H
HEIGHT WITH GUARD DOOR RAISED: 90″
ELECTRICS: 208V, 3 PH, 60 CYCLE
CAN BE WIRED: 230-575V, 3 PH, 60 CYCLE

EQUIPPED WITH
GE FANUC OT CONTROL

This machine is listed for sale by Action Machinery Co., Inc. located in Bethlehem, Pennsylvania
