We are pleased to offer for your consideration:

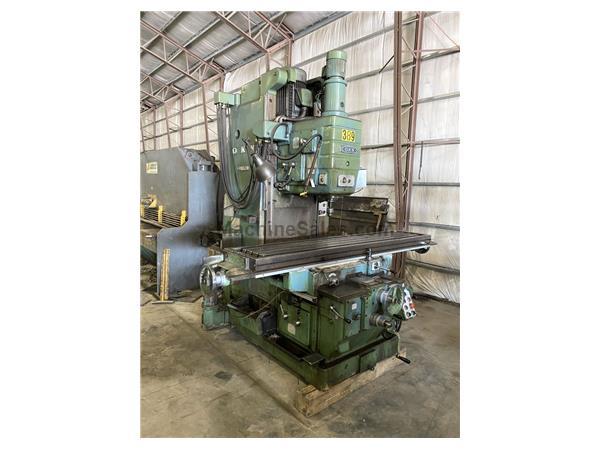

(1) 17-3/4" x 88-1/2" OKK Vertical Bed Mill

Stock Number: 13628
List Price: $19,950

Manufacturer: OKK
Model Number: MH-5VJ
Serial Number: 844

Table width: 17-3/4" (450 mm)
Table length: 88-1/2" (2250 mm)
Table T-slot width x number: 13/16" (22 mm) x 3
Longitudinal travel: 51-1/4" (1300 mm)
Cross travel of saddle: 16-1/2" (420 mm)
Vertical travel of head: 19-5/8" (500 mm)
Spindle nose to table: 4" to 23-5/8" (100-600 mm)
Spindle center to column: 20-1/2" (520 mm)
Spindle taper: #50 N.S.
Spindle speeds: (18) 22-1400 RPM
Table feeds, longitudinal & cross: (16) 3/8 to 66 IPM
Power rapid traverse, long & cross: 125 IPM
Power rapid traverse, head: 50 IPM
Spindle motor: 25 HP (18.5 KW)
Volts: 230/460
Phase: 3
Cycles: 60
Amps: 58/29
Feed motor: 3 HP (2.2 KW)
Cooant pump motor: 1/4 HP (0.15 KW)
Power draw bar motor: 1/2 HP (0.4 KW)
Floor space required: 165" x 92" (4200 x 2340 mm)
Approximate dimensions: 108" x 92" x 103" high (2750 x 2340 x 2620 mm)
Shipping height on 5" blocks: 108" (2750 mm)
Approximate weight: 18,700 lbs. (8,500 kg)

Features:
Power drawbar
Auto lubrication system
Coolant
(2) work lights
Air Hook up

NS Machine Corp
515-999-2999
[email protected]

This machine is listed for sale by NS Machine Corp. located in Granger, Iowa
