18" BAILEIGH® Automatic Horizontal Band Saw - $RFQ

Item Number: #00065875
18&quot; BAILEIGH&#174; Automatic Horizontal Band Saw

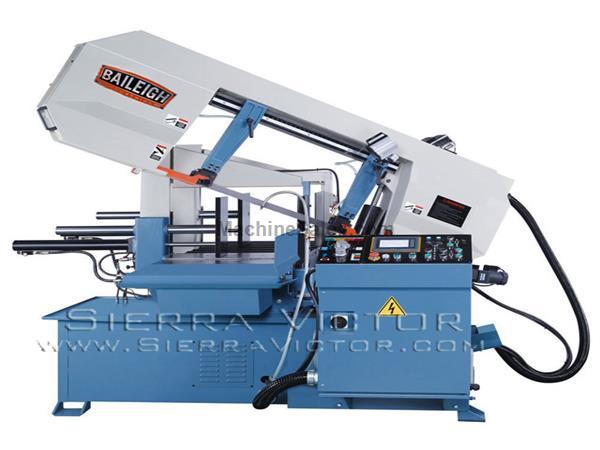

18" BAILEIGH® Automatic Horizontal Band Saw
Stock Code:  BS-24A
Price: $RFQ

Bandsaws Horizontal - Metal

Manufacturer:  Baileigh
Model:  BS-24A
Condition: New

When looking for a production band saw, one must look at all the ways that the saw can save money over the current unit. Baileigh Industrial took that into consideration when designing the BS-24A automatic band saw. The BS-24A has been constructed using only industrial grade components and materials and will stand up to years of grueling service in any demanding fabrication shop or machine shop.
The BS-24A is a 220 volt three phase fully automatic band saw that has an 18” round capacity at 90 degrees but can miter up to 45 degrees if it is needed. A Delta® inverter drives an industrial sized 5 hp in order to turn the massive 1-1/2” blade. The inverter allows the operator to adjust speed “on the fly” from 65 to 279 feet per minute. This adjustment saves blade life as well as increases the quality of the cut.

Being an automatic band saw the BS-24A is at home cutting a single piece of material or complete bundles with its heavy duty hydraulic bundling device that also acts as the feed system. The feed system that is uses encoders for precise material placement. Operation of the BS-24A is very simple and uses a mix of standard control knobs and buttons as well as a user friendly touch screen programmer. The programmer lets the operator input things like cut lengths, number of cuts, and allows different settings for each program. The standard controls are for changing things like bow height, descent and blade speed. The BS-24A can be run in automatic and manual modes as well.
Standard features on the BS-24A automatic band saw are broken blade shut off, patented blade tension devise, and a halogen work light.

Capacity Round (90° / 45°): 18” / 15"
Capacity Square (90° / 45°): 18” / 15"
Capacity Rectangular: 15” x 24”
Blade Size (H/W/L): 1.5” / .051” / 209.85”
Blade Speed (fpm): 65-279 (Variable Speed)
Blade Guide: Carbide / Roller
Miter Angle: 0 – 45°
Miter Adjustment: Swivel Head
Table Height: 32.3
Descent Control: Pressure Assist Hydraulic
Return: Hydraulic
Chip Removal: Hydraulic Auger
Material Feed: Hydraulic
Material Clamping / Bundling: Hydraulic
Motor Blade: 5 hp
Motor Hydraulic: 1 hp
Power Requirement: 220V
Shipping Dimensions (L/W/H): 109” / 90” / 77”
Shipping Weight: 3,900 lbs.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.
