2 Post Band Saw model P-50 - $RFQ

Item Number: #00035074

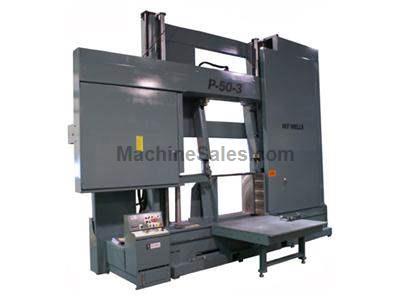

2 Post Band Saw model P-50





2 Post Band Saw model P-50

Price: $RFQ
Subcategory:

Bandsaws Horizontal - Dual Column - Metal

Manufacturer:  Wells
Model:  P-50
Condition: New

STANDARD SPECIFICATIONS:
Made in USA by WF Wells
Capacity Rectangular @ 90°: 50" H x 50" W
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 2" x .063" x 37'-8"
Blade Guide Carbide Blocks, Spring Tensioned
Blade Tension Hydraulic, Console Controlled
Sawing Force Variable: 0-1000 Lbs
Vise: Hydraulic Full Stroke
Hydraulic System: 20 Gallon Capacity, 5 HP Motor
Coolant System: 60 Gallon Capacity, 10 GPM Pump
Work Height: 26"
Shipping Weight: 21,500 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 24' L x 60" W x 13'6" H
LED Blade Speed Indicator
Hydraulic Guide Arm Positioning
Blade Break/Stall Switch
Hydraulic Powered Blade Brush

OPTIONAL ACCESSORIES:
* Discharge Worktable, 50" W x 48" L
* Discharge Worktable, 50" W x 96" L
* Hydraulic Holddown, Saw Vise
* High Speed Drive, Roller Guides
* Hydraulic Chip Conveyor
* Option S50-4 comes with 2-5/8" Bi-Metal Blade + LED Positive Feed Readout + Chip Conveyor and also comes with Positive Frame Feed, which allows the head to descend at a fixed rate (inches per minute) for optimum cutting of those high production applications where similar types of material are cut repetitively. Hydraulic down pressure moves the blade through tough materials at a constant rate.

This machine is listed for sale by American Machine Tools Company located in Chicago, Illinois
