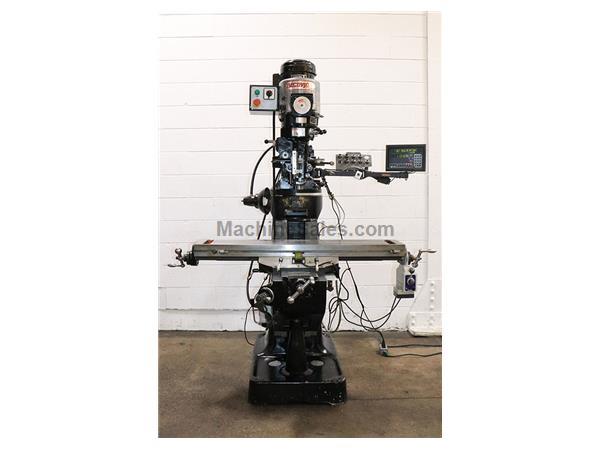

VECTRAX VERTICAL MILLING MACHINE
MODEL: CL, S/N: 1052J019, NEW: 2016

SPECIFICATIONS:
TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 31"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 14-1/4"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/4" / 0"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60 - 4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,100 LBS

EQUIPPED WITH:
NEWALL TWO AXIS DIGITAL READOUT
POWER FEED FOR LONGITUDINAL TRAVEL
HARDENED WAYS
ONE SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

This machine is listed for sale by Prime Machinery, Inc. located in HUNTINGTON, New York
