Approximately 630 Run time Hours note Built in 2012 - used as demo delivered in 2018


NOTE: Blue Hoist in Front of the Machine not Included

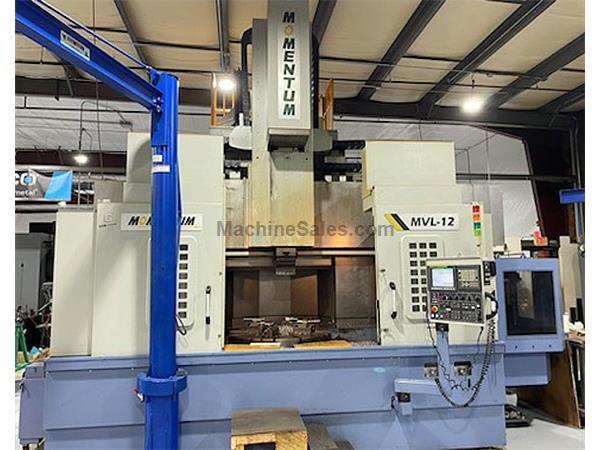

Momentum 49” CNC VTL Auto tool Changer & Fanuc 0i-TD Controller


Specifications:
Travels
X-Axis Travel – Ram Left / Right 71.65”
Z-Axis Travel – Spindle Up / Down 35.43”
Cross Rail Travel UP / Down 19.68” – 3 Positions / 2 Steps
Max Swing Diameter 63”
Max Turning Diameter 63”
Max Turning Height 47.24”

Cross Section of RAM 7.87” x 7.87”

Table Features
Dimensions 49.2” Diameter
Maximum Workpiece Weight 17,637 lbs
Ram bottom to table top, Max 0-47.44”
Low gear table speed 34-103 PM
High Gear Table Speed 104 – 312 RPM
Max Table Torque 9145 ft.lb

Rapid Traverse Feedrate
X-Axis 393.7 ipm
Z-Axis 393.7 ipm


Flood Coolant System
Coolant Tank Capacity 18 Gallons
Power Requirement 480 Volt, 3 Phase, 50/60 Hz, 80 kVA
60 / 50 HP (30 min / continuous)



Floor Space (Standard)
283” x 197” 215” (L x W x H)
Machine Net Weight 51,800 lbs



Standard Turning Spindle
Two Speed Gear head
RPM Range 0-312 RPM
Standard Spec 34 ~ 312 (low: 34 ~ 103 / high: 104 ~ 312)
High Column Spec: 24 ~ 288 (low: 24 ~ 95 / high: 73 ~ 288)
Equipped with:

5 Tool Holders – 2 OD Facing, 1 Socket, 1 Burring, 1 Drilling
CAT50 ½ dozen available
Milling & Live tooling
Chip Conveyor
Manuals

This machine is listed for sale by Kaste Industrial Machine Sales located in Enfield, Connecticut
