SHARP Vertical Mill Package LMV-50K - $RFQ

Item Number: #00144961

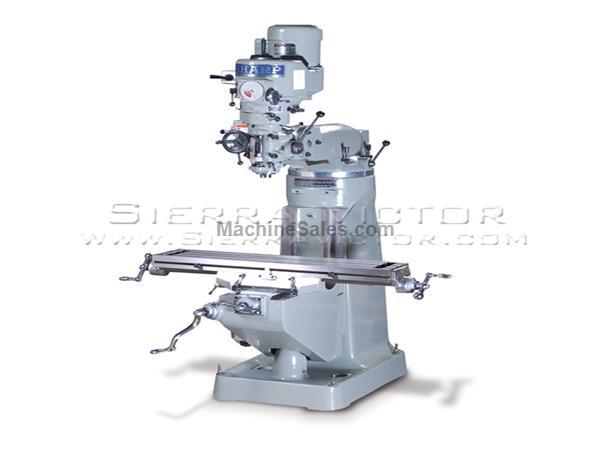

SHARP Vertical Mill Package LMV-50K

SHARP Vertical Mill Package LMV-50K
Stock Code:  LMV-50K
Price: $RFQ
Subcategory:

Vertical Millers

Table width9"
Table length50"
Manufacturer:  U-S-Industrial
Model:  LMV-50K
Condition: New

CALL FOR AVAILABILITY AND BEST PRICING!

FEATURES:
ISO 9002 Certified: Quality Up To World Industry Standards
Meehanite Casting: Highest Grade Of Casting Possible.
A Pair Of High Out-Put Fans: Keeps Head And 3-Hp Motor Cool, To Run Jobs For Extended Periods Without Damaging The Motor, Belts And Bearing.
A Pair Of Precision ABEC-7 Angular Contact Bearings To Support Spindle. The Quill Is Ground And Chromed To Fit The Housing: This Insures A Spindle Run out Of .0002” T.I.R
Motor Shaft And Varidrive Pulleys Are Dynamically Balanced, Then Chromed For A Flawless Fit, Ground Ribs On Inside Diameter: For Smooth Speed Changes
Motor Shaft Has An Oil Channel In The Center That Is Fed By A Grease Fitting On The Lower End: To Keep Vari-Drive Pulley Moving Smoothly On The Shaft
This LMV-50 Mill Uses A Roller Bearing For The Lower Support Of The Shaft: It Ensures Proper Loading, Support And Alignment It Also Prevents The Shaft From Being Distorted By The Tension Of The Belt: For Quiet, Accurate Operation At Any Speed For Years And Years.
One Shot Lubrication System: For Lubrication Of Ways And Lead Screws. (X,Y And Z-Axis)
Hand Scraped Saddle And Knee: For Better Oil Retention. It Avoids Having Chips And Dirt Embed In The Knee And Damage The Sliding Surface.
Oil Groove Are Milled: For Maximum Lubrication On All Wear Areas
Table And Saddle Backlash Is Controlled By Double Nut Design: Keeps Lead Screw In Contact With Bronze Nuts An All Times To Keep Backlash At .0008” Within 20”.
Table And Saddle Are Mounted With Thrust Bearings That Are Pre Loaded: Eliminating Endplay For Precisely Controlled Lateral Movement
Patient Knuckle Design Uses 6 Bolt 3 Per Side, Securing Them From The Outside: This Method Locks The Head Securely Resulting In Better Accuracy And Performance
Ways Are Hard Chrome Dovetail On Saddle And Column
3HP Motor
Variable Speed Drive (60-4500 RPM)
R-8 Spindle
Dual Cooling Fans
Meehanite Casting
Chromed Ways
Self-Lubricating Motor Shaft Extends Pulley Life
Abec-7 Super Precision Spindle Bearings

STANDARD EQUIPMENT:
Hard-Chrome Ways And Gibbs
Precision Ground And Flaked Table
Unique Double Nut Backlash System
Double Fan Cooling System
Cutler Hammer On/Off Switch
Front And Rear Way Covers
One Shot Lube System (X , Y , Z Axes)
Tool Kit Includes:
Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set Of 6 Allen Wrenches, Philip Screw Driver, Flat Head Screw Driver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin For Indicator, Can Of Paint

SPECIFICATIONS:
TABLE
Working surface: 9" x 50"
T-slot number, size: 3 Slots, 5/8"

CAPACITY
Travels (X, Y, And Z): 37” x 12” x 5”
Ram Travel: 12"
Knee travel: 16"
Spindle to column (min-max): 6 3/4" - 18 1/2"
Spindle to nose to table (min-max): 2 1/8” - 18"

SPINDLE
Spindle Motor: 3 HP
Spindle Nose Taper: R8
Spindle Variable Speed Drive: 60-4500 Rpm
Quill Feed 3 Speed (IPR): .0015,.003, .006”
Quill diameter: 3-3/8"
Head swivel: 360°
Head Tilt (Lt. To Rt): 45°
Head tilt (up-and-down): 45°

DIMENSIONS & WEIGHT
Floor area (w x d x h): 7’ x 6.5’ x 6.75’
Net weight: 2,500 lbs.

TOTAL POWER CONSUMPTIONS
220V: 3KVA/8 amps
440V: 3KVA/4 amps

OPTIONAL ITEMS:
Auto Lube Pump W/2 Adjustments (installed)
6” “Kurt” Vise with Swivel Base D688
“Sharp” Power Table Feed with Safety Handle (X-Axis) (NOTES: SP-250A installation may reduce the X-axis travel)
X Axis Installation
“Sharp” Power Cross Feed with Safety Handle (Y-Axis)
Y Axis Installation
“Sharp” Power Knee Feed with Safety Handle (Z-Axis)
Z Axis Installation
Right Angle Milling Attachment with Arbor
Right Angle Milling Attachment with Arbor
Drill Chuck & Drill Arbor
6” Riser Block
Riser Block Installation
Coolant System with Chip Pan at Base (pump included)
“Maxi Torque Rite” Power Draw Bar
Factory Installation (“Maxi Torque Rite” Power Draw Bar)
R-8 Collet (Set of 11) - 1/8”-3/4” BY 1/16”
Clamping Kit (52 pcs/Steel Rack)
Halogen Work light
CE mark
380V and 575 V transformer
UL components upgrade with electrical box ( factory order)
UL compliance certificate under State of California
Fagor Digital Readout 2-Axis X&Y (Fagor 20i)
2 Axis D.R.O. Installation
Fagor Digital Readout 3-Axis X&Y on Quill (Z) (Fagor 30i)
Fagor Digital Readout 3-Axis X&Y on Knee (Z) (Fagor 30i)
3 Axis D.R.O. Installation
Acu-Rite 200S Digital Readout 2-Axis X&Y
2 Axis D.R.O. Installation
CALL FOR MORE INFORMATION

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts
