SPECIFICATIONS
TRAVELS
-X AXIS: 30"
-Y AXIS: 16"
-Z AXIS: 20"

TABLE SIZE: 36" X 14"
MAXIMUM TABLE LOAD: 3,000 LBS
SPINDLE NOSE TO TABLE TOP: 4" - 24"
RAPID TRAVERSE RATE - ALL AXES: 1,000 IPM
CUTTING FEED RATE: 0.1 - 500 IPM
SPINDLE SPEEDS: 10,000
SPINDLE TAPER: BT 40
SPINDLE MOTOR (VECTOR DRIVE): 20 HP AC
TOOL CHANGER CAPACITY: 20
MAXIMUM TOOL WEIGHT: 12 LBS

EQUIPPED WITH
HAAS 32-BIT CONTROL WITH 9 in. CRT AND RS-232C INTERFACE
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING)
BRUSHLESS SERVO DRIVES
PROGRAMMABLE COOLANT NOZZLE
CHIP AUGER
COORDINATE ROTATION & SCALING
MACROS
QUICK CODE
HIGH SPEED MACHINING
REMOTE JOG HANDLE
TOOL STORAGE RACK
16MB MEMORY / FLOPPY DRIVE
4TH AXIS DRIVE

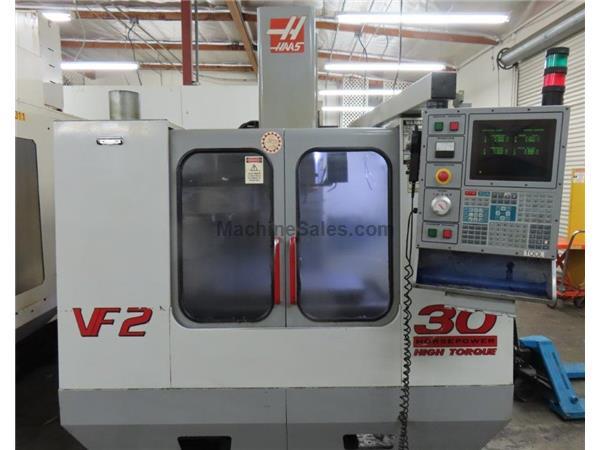

This machine is listed for sale by Machinery Resources International located in Simi Valley, California
