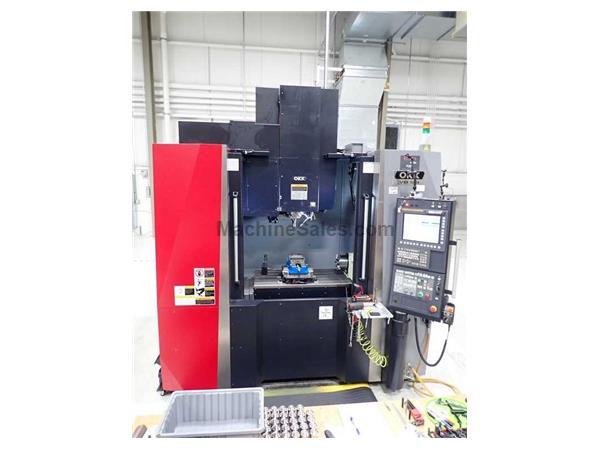

OKK VB53a 4-AXIS CNC VERTICAL MACHINING CENTER
Model VB53a, S/N 482, New 2016
Stock # Q11601

EQUIPPED WITH:
Fanuc 31i-B CNC Control, 6" 4th Axis Koma Rotary Table, 20000 RPM Spindle, 30 Station Tool Changer, Spindle Chiller, Chip Blaster High Pressure Coolant System, Chip Conveyor & Coolant System.

FEATURES:
Designed for Tool & Die, its surface finishing capability, fewer vibration stripes by accel and decel, and less quadrant projections features a number of technological innovations. Fine Pitch ball screw reduces the maximum rapid speed but increases the overall precision of the entire system along with a rigid machine base. The VB53 employs an external, isolated oil cooler, which removes a common source of vibration from the machine, resulting in high die quality. Countermeasures for thermal displacement are designed to provide precision capability. The coolant shelter prevents the casting from being exposed to either cutting chips or coolant. Additionally, standard equipment like the 0.05-micron scale feedback linear scale enhances the positioning accuracy through all possible applications.

SPECIFICATIONS:
# Axis.......................................................... 4
Table Size..................................................... 49" x 23"
Table Load Capacity....................................... 2,646 LBS
X-Axis (Longitudinal Travel)............................ 41"
Y-Axis (Cross Travel)...................................... 20"
Z-Axis (Vertical Travel)................................... 20"
Rapid Traverse Rate, All Axes.......................... 787 IPM
Spindle Horsepower....................................... 20 HP
Max Spindle Speed......................................... 20,000 RPM
Spindle Taper................................................ CAT 40
Coolant Thru Spindle...................................... yes
Automatic Tool Changer Capacity (ATC)............ 30
Machine Hours............................................... 3358
Electrics........................................................ 220/3/60
Approximate Machine Dimensions.................... 99" x 99"
Approximate Machine Height........................... 115"
Approximate Machine Weight.......................... 15,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

This machine is listed for sale by Great American Equipment Co located in Cincinnati, Ohio
