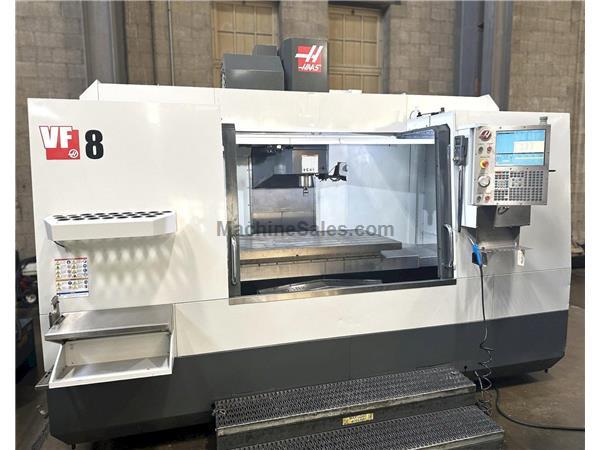

HAAS VF-8/40 CNC VERTICAL MACHINING CENTER
Model VF-8/40, S/N 1108006, New 2013
Stock # Q11592

EQUIPPED WITH:
Haas CNC Control, Upgraded 15000 RPM Spindle, Rigid Tapping, 30 Station Tool Changer, Through Spindle Coolant, Programmable Coolant Nozzle, Chip Auger, Upgraded 95 Gallon Coolant System.

SPECIFICATIONS:
# Axis........................................................... 3
Table Size..................................................... 64" x 36"
Table Load Capacity........................................ 4,000 LBS
X-Axis (Longitudinal Travel)............................. 64"
Y-Axis (Cross Travel)...................................... 40"
Z-Axis (Vertical Travel)................................... 30"
Max/Min Clearance Tabletop to Spindle Nose...... 34" / 4"
Feed Rates, All Axes....................................... 500 IPM
Rapid Traverse Rate, All Axes........................... 600 IPM
Spindle Horsepower........................................ 30 HP
Max Spindle Speed......................................... 15,000 RPM
Spindle Taper................................................ CAT40
Torque, Up To................................................ 90 FT-LBS @ 2000 RPM
Coolant Thru Spindle...................................... yes
Automatic Tool Changer Capacity (ATC)............ 30+1
Automatic Tool Changer Style.......................... Side-Mount
Tool Change Time.......................................... 2.8 Sec
Electrics........................................................ 240/3/60
Approximate Machine Dimensions.................... 193" x 120"
Approximate Machine Height........................... 130"
Approximate Machine Weight........................... 24,800 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

This machine is listed for sale by Great American Equipment Co located in Cincinnati, Ohio
