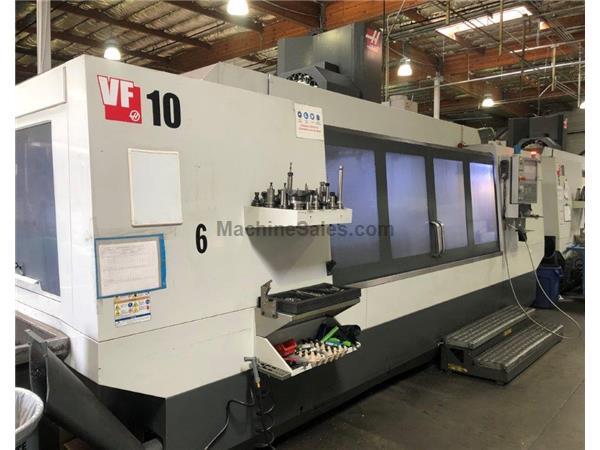

HAAS VF-10 CNC VERTICAL MACHINING CENTER NEW: 2016 | AG |
|
| Stock Code: |
85131 AG |
| Price: | $RFQ |
| Subcategory: | Vertical Machining Centers CNC |
| X axis: | 120" |
| Y axis: | 32" |
| Year of Manufacture: |
2016 |
| Manufacturer: |
Haas |
| Model: |
VF-10 |
| Condition: | Used |
SPECIFICATIONS
TABLE TRAVELS
-X AXIS: 120"
-Y AXIS: 32"
-Z AXIS: 30"
RAPID TRAVERSE RATES
-X AXIS: 360 IPM
-Y & Z AXIS: 600 IPM
TABLE WORKING SURFACE: 120" x 28"
TABLE LOAD CAPACITY: 4,000 LBS
SPINDLE NOSE TO TABLE: 4" - 34"
TOOL STORAGE CAPACITY: 24
SPINDLE HORSEPOWER: 30 HP
SPINDLE SPEEDS RANGE: 8,100 RPM
SPINDLE TAPER: CAT-40
TOOL CHANGE TIME (T-T): 2.8 sec
WAY SYSTEM: LINEAR GUIDEWAY
APPROXIMATE WEIGHT: 30,100 LBS
DIMENSIONS: 288" x 102" x 130"
EQUIPPED WITH
HAAS CNC CONTROL
RIGID TAPPING
CHIP AUGER
24 STATION TOOL CHANGER
PROGRAMMABLE COOLANT NOZZLE
4TH AXIS DRIVE
COOLANT THRU SPINDLE AT 300 PSI
64 GB MAX MEMORY
REMOTE JOG HANDLE / USB
COMPENSATION TABLES / CUSTOM ROTARIES / MEDIA DISPLAY
COOLANT TANK (95 GALLON)
HOURS
POWER ON: 10,757
CYCLE START: 1,326
FEED CUT: 1,178
This machine is listed for sale by Machinery Resources International
located in Simi Valley, California
