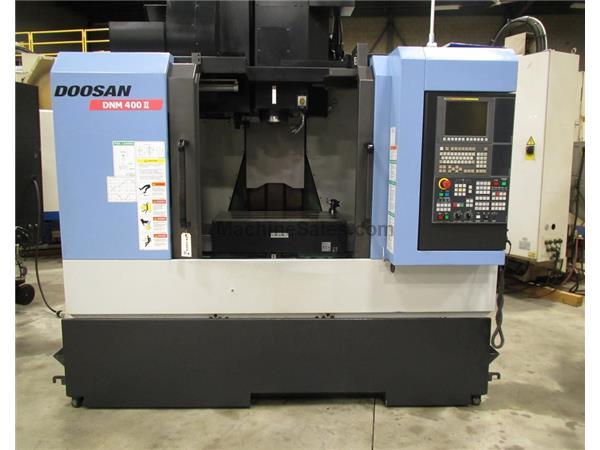

2014 DOOSAN DNM-400II VMC, FANUC OiMD, 30" x 17" x 20" TRAV - $RFQ

Item Number: #00144213
2014 DOOSAN DNM-400II VMC,  FANUC OiMD, 30&quot; x 17&quot; x 20&quot; TRAV

2014 DOOSAN DNM-400II VMC, FANUC OiMD, 30" x 17" x 20" TRAV
Stock Code:  TK-21050
Price: $RFQ
Subcategory:

Vertical Machining Centers CNC

X axis30"
Y axis17"
Year of Manufacture:  2014
Manufacturer:  Doosan
Model:  DNM-400II
Condition: Used

TRAVELS
X-AXIS TRAVEL: 30”
Y-AXIS TRAVEL: 17.1”
Z-AXIS TRAVEL: 20.1”
SPINDLE CENTER TO TABLE TOP: 5.9” – 30.5”
SPINDLE NOSE TO COLUMN: 20.2”

FEED RATES
RAPIDS (X/Y): 1,417 IPM
RAPIDS (Z): 1,181 IPM
CUTTING FEED RATE: 590.6 IPM

TABLE
TABLE SIZE: 36.2” X 17.1”
TABLE LOAD CAPACITY: 1,322.8 LBS

SPINDLE
MAXIMUM SPINDLE SPEED: 12,000 RPM
TAPER: ISO #40


AUTOMATIC TOOL CHANGER
TOOL SHANK TYPE: CAT-40 (BIG PLUS)
TOOL STORAGE CAPACITY: 30 POSITIONS
TOOL DIAMETER (W/O ADJ TOOL): 4.9”
TOOL DIAMETER (WITH ADJ TOOL): 3.1”
MAXIMUM TOOL LENGTH: 11.8”
MAXIMUM TOOL WEIGHT: 17.6 LBS
TOOL-TO-TOOL: 1.3 SECONDS
CHIP-TO-CHIP: 3.7 SECONDS

MOTOR
POWER: 20/15 HP
COOLANT PUMP: .5 HP

GENERAL
MACHINE HEIGHT: 106.4”
MACHINE LENGTH: 89.8”
MACHINE WIDTH: 103”
MACHINE WEIGHT: 11,023 LBS
ELECTRICS: 220 VOLT, 3 PH, 60 CYC


FEATURES

10.4” COLOR TFT LCD
AIR TIGHT SPLASH GUARD
BUILT-IN SCREW CHIP CONVEYOR
COOLANT SYSTEM
COOLANT TANK WITH CHIP PAN
DOOR INTERLOCK
SIGNAL TOWER
PORTABLE MPG
SPINDLE HEAD COOLING SYSTEM
WORK LIGHT
X, Y, Z ABSOLUTE PULSE CODER

EQUIPPED WITH
FANUC OiMD CONTROL
SHOWER COOLANT
ETHERNET FUNCTION
230 PSI THROUGH SPINDLE COOLANT
RENISHAW PROBE SYSTEM WITH OMI-2T RECEIVER & OTS TABLE MOUNTED SETTER (MISSING SPINDLE TOUCH PROBE)
TOOL LOAD MONITORING
EZ GUIDE I
